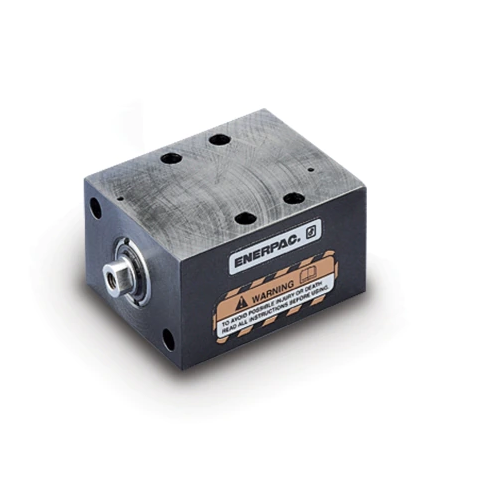

Xy lanh kẹp ENERPAC CDB/MRS series
| Model Number | Maximum Operating Pressure (bar) | Minimum Operating Pressure (bar) | Stroke (mm) | Return Type | Plunger Type | Material | Cylinder Effective Area Advance (cm2) | Cylinder Effective Area Retract (cm2) | Oil Capacity Advance (cm3) | Oil Capacity Retract (cm3) | Piston Diameter (mm) | Rod Diameter (mm) | Clamping Force Advance (kN) | Clamping Force Retract (kN) | Weight (kg) |
| CDB10162 | 350 | 40 | 15 | Double-Acting, Hydraulic Return | Solid | Steel | 3,1 | 2,0 | 5,1 | 3,3 | 19,8 | 11,9 | 10,7 | 6,9 | 0,9 |
| CDB10362 | 350 | 40 | 35,1 | Double-Acting, Hydraulic Return | Solid | Steel | 3,1 | 2,0 | 11,3 | 7,2 | 19,8 | 11,9 | 10,7 | 6,9 | 1,2 |
| CDB18202 | 350 | 40 | 20 | Double-Acting, Hydraulic Return | Solid | Steel | 4,9 | 2,9 | 9,8 | 5,7 | 24,9 | 16,0 | 16,9 | 10,0 | 1,3 |
| CDB18502 | 350 | 40 | 50 | Double-Acting, Hydraulic Return | Solid | Steel | 4,9 | 2,9 | 24,6 | 9,8 | 24,9 | 16,0 | 16,9 | 10,0 | 1,8 |
| CDB40252 | 350 | 40 | 22,6 | Double-Acting, Hydraulic Return | Solid | Steel | 12,6 | 6,3 | 31,5 | 15,7 | 39,9 | 24,6 | 43,3 | 21,8 | 1,9 |
| CDB40502 | 350 | 40 | 50 | Double-Acting, Hydraulic Return | Solid | Steel | 12,6 | 6,3 | 62,8 | 31,6 | 39,9 | 24,6 | 43,3 | 21,8 | 2,6 |
| CDB70252 | 350 | 40 | 27,4 | Double-Acting, Hydraulic Return | Solid | Steel | 19,6 | 11,6 | 49,2 | 29,0 | 50,0 | 32,0 | 67,6 | 40,0 | 3,2 |
| CDB70502 | 350 | 40 | 50 | Double-Acting, Hydraulic Return | Solid | Steel | 19,6 | 11,6 | 98,2 | 58,0 | 50,0 | 32,0 | 67,6 | 40,0 | 4,3 |
| CDB180252 | 350 | 40 | 24,9 | Double-Acting, Hydraulic Return | Solid | Steel | 50,2 | 30,6 | 125,5 | 76,6 | 80,0 | 50,0 | 172,9 | 105,3 | 9,3 |
| CDB180502 | 350 | 40 | 50 | Double-Acting, Hydraulic Return | Solid | Steel | 50,2 | 30,6 | 251,2 | 153,1 | 80,0 | 50,0 | 172,9 | 105,3 | 11,5 |
| CDB280562 | 350 | 40 | 55,1 | Double-Acting, Hydraulic Return | Solid | Steel | 78,5 | 47,3 | 439,7 | 265,1 | 99,8 | 63,0 | 270,5 | 162,9 | 18,2 |
| Model Number | Maximum Operating Pressure (bar) | Return Type | Plunger Type | Material | Oil Capacity Advance (cm3) | Cylinder Capacity Advance At 350 (bar) | Effective Clamping Stroke (mm) | Maximum Tensioning Stroke (mm) | Required Operating Pressure (bar) | Weight (kg) |
| MRS1 | 350 | Single-Acting, Spring Return | Solid | Steel | 8,36 | 12,0 | 2,3 | 2,3 | 350 | 0,5 |
| MRS2 | 350 | Single-Acting, Spring Return | Solid | Steel | 4,26 | 26,7 | 2,3 | 2,3 | 350 | 0,9 |
| MRS5 | 350 | Single-Acting, Spring Return | Solid | Steel | 8,19 | 51,2 | 2,3 | 2,3 | 350 | 1,8 |
| MRS1001 | 350 | Single-Acting, Spring Return | Solid | Steel | 8,85 | 8,5 | 2,5 | 5,1 | 140 | 1,2 |
| MRS2001 | 350 | Single-Acting, Spring Return | Solid | Steel | 11,96 | 16,5 | 2,5 | 5,1 | 185 | 2,1 |
| MRS3001 | 350 | Single-Acting, Spring Return | Solid | Steel | 19,99 | 25,8 | 2,5 | 5,1 | 180 | 3,0 |
| MRS5001 | 350 | Single-Acting, Spring Return | Solid | Steel | 22,12 | 37,8 | 3,0 | 5,6 | 235 | 3,5 |
