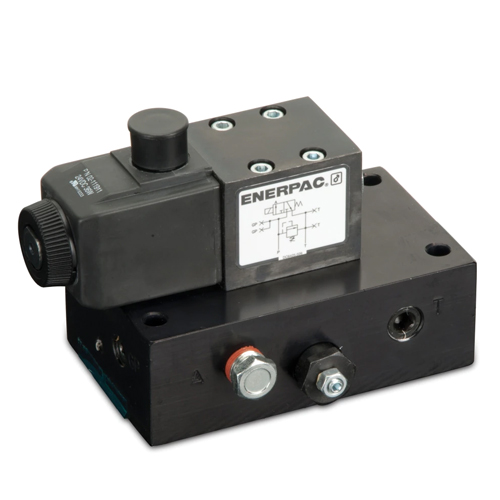

Van thủy lực Enerpac VE series

Model Number	Maximum Operating Pressure (bar)	Valve Type	Function	Cylinder Compatibility	Mounting Location	Valve Operation	Flow Capacity (l/min)	Pendant Compatibility	Voltage	Weight (kg)
VE32	700	3-Way, 2-Position	Advance / Hold / Retract	Single-Acting	Pump Mounted	Solenoid	17	ZCP3	24 VCC	3,9
VE32D	700	3-Way, 2-Position, Dump	Advance / Retract	Single-Acting	Pump Mounted	Solenoid	17	ZCP1	24 VCC	3,9
VE33VAC	700	3-Way, 3 Position, Tandem Center, Venturi Return Assist	Advance / Hold / Retract	Single-Acting	Pump Mounted	Solenoid	17		24 VCC
VE33	700	3-Way, 3-Position, Tandem Center, Locking	Advance / Hold / Retract	Single-Acting	Pump Mounted	Solenoid	17	ZCP3	24 VCC	9,3
VE33115	700	3-Way, 3-Position, Tandem Center, Locking	Advance / Hold / Retract	Single-Acting	Pump Mounted	Solenoid			115 VAC
VEW11	350	4-Way, 2-Position				Solenoid	2,1		At 50/60 Hz, 24 VDC @ 1,32 A
VET11	350	4-Way, 3-Position, Closed Center				Solenoid	2,1		At 50/60 Hz, 24 VDC @ 1,32 A
VEX11	350	4-Way, 3-Position, Float Center				Solenoid	2,1		At 50/60 Hz, 24 VDC @ 1,32 A
VE43	700	4-Way, 3-Position, Tandem Center, Locking	Advance / Hold / Retract	Double-Acting	Pump Mounted	Solenoid	17	ZCP3	24 VCC	9,3
VE43115	700	4-Way, 3-Position, Tandem Center, Locking	Advance / Hold / Retract	Double-Acting	Pump Mounted	Solenoid			115 VAC
VESeriesConfigurableSolenoidOperatedModularValves	700					Solenoid
