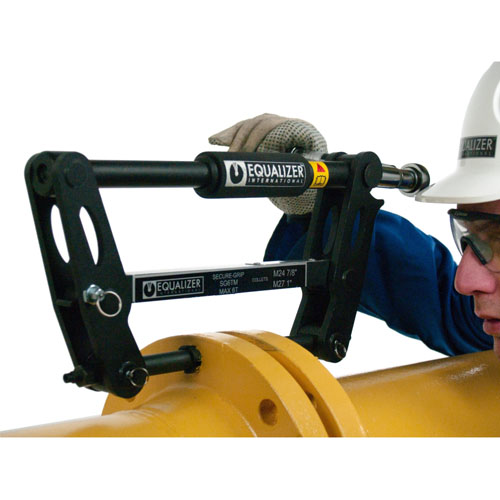

Tách mặt bích Enerpac SG series

Hãng sản xuất : ENERPAC

Product	Availability	Maximum Spread (mm)	Power Source	Maximum Operating Torque (Nm)	Capacity (metric tons)	Capacity (kN)	Flange Minimum Access Gap A (mm)	Flange Bolt-hole Diameter B (mm)	Usable on Flanges Specified to Accept the Following Bolt Sizes	Weight (kg)
SG4TMSTD	Out of stock	75	Mechanical	47	3.7	37	0	17,5-23	M16, M20, 5/8”, 3/4”	12,8
SG6TMSTD	Out of stock	80	Mechanical	108	6	60	0	24-30	M24, M27, 7/8”, 1”	16
SG11TMSTD	Out of stock	90	Mechanical	120	11	110	0	30-39	M30, M33, M36, 1 1/8”, 1 1/4”, 1 3/8”	20
SG13TESTD	Out of stock	115	Hydraulic		13	130	0	38-49	M39 (1 1/2”), M42 (1 5/8”), M45 (1 3/4”)	40,5
SG15TESTD	Out of stock	100	Hydraulic		15	150	0	47,5-62	M48 (1 7/8”), M52 (2”), M56 (2 1/4”)	45
SG18TESTD	In Stock	100	Hydraulic		18	180			M60 (2 3/8”), M64 (2 1/2”), M70 (2 3/4”)	45
SG25TESTD	Out of stock	120	Hydraulic		25	250			M76 (3”), M80 (3 1/4”), M84 (3 3/8”), M90 (3 1/2”), M95 (3 3/4”), M100 (4”)	50
