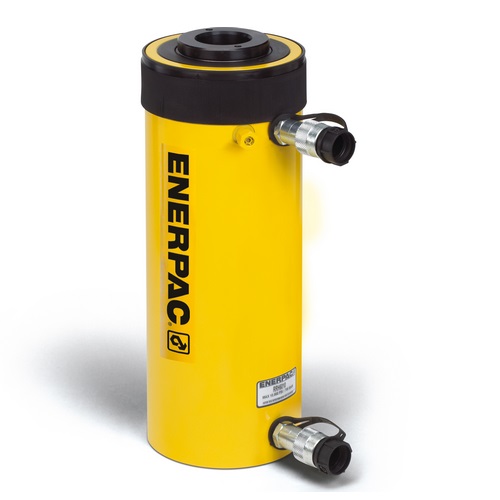

Kích thủy lực 2 chiều rỗng Enerpac RRH

Kích thủy lực rỗng tâm Enerpac RRH-606 (60 tấn)

Model : RRH-606

Tải trọng : 60 tấn

Hãng sản xuất : ENERPAC

Bảo hành : 12 tháng

Danh mục: Kích thủy lực rỗng tâm

Mô tả

Model Number	Maximum Operating Pressure (bar)	Capacity Class (tonnage)	Maximum Cylinder Capacity Advance (kN)	Maximum Cylinder Capacity Retract (kN)	Stroke (mm)	Collapsed Height A (mm)	Extended Height B (mm)	Return Type	Plunger Type	Material	Cylinder Effective Area Advance (cm²)	Cylinder Effective Area Retract (cm²)	Oil Capacity Advance (cm³)	Oil Capacity Retract (cm³)	Surface Treatment	Weight (kg)
RRH307	700	30	326	213	178	330	508	Double-Acting, Hydraulic Return	Hollow	Steel	46,6	30,4	829	541	Paint	21
RRH3010	700	30	326	213	258	431	689	Double-Acting, Hydraulic Return	Hollow	Steel	46,6	30,4	1202	784	Paint	27
RRH603	700	60	576	380	89	247	336	Double-Acting, Hydraulic Return	Hollow	Steel	82,3	54,2	733	482	Paint	28
RRH606	700	60	576	380	166	323	489	Double-Acting, Hydraulic Return	Hollow	Steel	82,3	54,2	1366	900	Paint	35
RRH6010	700	60	576	380	257	438	695	Double-Acting, Hydraulic Return	Hollow	Steel	82,3	54,2	2115	1393	Paint	45
RRH1001	700	100	931	612	38	165	203	Double-Acting, Hydraulic Return	Hollow	Steel	133,0	87,4	505	333	Paint	33
RRH1003	700	100	931	612	76	254	330	Double-Acting, Hydraulic Return	Hollow	Steel	133,0	87,4	1011	666	Paint	61
RRH1006	700	100	931	612	153	342	495	Double-Acting, Hydraulic Return	Hollow	Steel	133,0	87,4	2035	1337	Paint	79
RRH10010	700	100	931	612	257	460	717	Double-Acting, Hydraulic Return	Hollow	Steel	133,0	87,4	3420	2246	Paint	106
RRH1508	700	150	1429	718	203	349	552	Double-Acting, Hydraulic Return	Hollow	Steel	204,1	102,6	4144	2083	Paint	111

RRH1001
