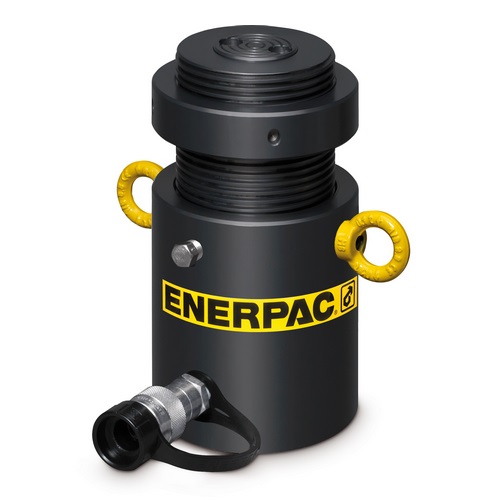

Kích thủy lực có đai ốc hãm Enerpac HCL-8006

Name: Kích thủy lực có đai ốc hãm Enerpac HCL-8006
SKU: 1132
Availability: InStock

Giá gốc là: 500.000 ₫.Giá hiện tại là: 250.000 ₫.

Model : HCL-8006

Tải trọng : 800 tấn

Hãng sản xuất : ENERPAC

Bảo hành : 12 tháng

Danh mục: Kích thủy lực có đai ốc hãm

Mô tả

Model Number	Maximum Operating Pressure (bar)	Capacity Class (tonnage)	Maximum Cylinder Capacity Advance (kN)	Stroke (mm)	Collapsed Height A (mm)	Extended Height B (mm)	Return Type	Plunger Type	Material	Cylinder Effective Area Advance (cm²)	Oil Capacity Advance (cm³)	Sideload Resistance of Maximum Capacity (percentage)	Surface Treatment	Weight (kg)
HCL502	700	50	550	50	164	214	Single-Acting, Load Return	Solid	Steel	78,5	393	10%	Nitride	17
HCL504	700	50	550	100	214	314	Single-Acting, Load Return	Solid	Steel	78,5	785	10%	Nitride	22
HCL506	700	50	550	150	264	414	Single-Acting, Load Return	Solid	Steel	78,5	1178	10%	Nitride	27
HCL508	700	50	550	200	314	514	Single-Acting, Load Return	Solid	Steel	78,5	1571	10%	Nitride	32
HCL5010	700	50	550	250	364	614	Single-Acting, Load Return	Solid	Steel	78,5	1963	10%	Nitride	38
HCL5012	700	50	550	300	414	714	Single-Acting, Load Return	Solid	Steel	78,5	2356	10%	Nitride	43
HCL1002	700	100	1002	50	187	237	Single-Acting, Load Return	Solid	Steel	143,1	716	10%	Nitride	35
HCL1004	700	100	1002	100	237	337	Single-Acting, Load Return	Solid	Steel	143,1	1431	10%	Nitride	44
HCL1006	700	100	1002	150	287	437	Single-Acting, Load Return	Solid	Steel	143,1	2147	10%	Nitride	54
HCL1008	700	100	1002	200	337	537	Single-Acting, Load Return	Solid	Steel	143,1	2863	10%	Nitride	63
HCL10010	700	100	1002	250	387	637	Single-Acting, Load Return	Solid	Steel	143,1	3578	10%	Nitride	73
HCL10012	700	100	1002	300	437	737	Single-Acting, Load Return	Solid	Steel	143,1	4294	10%	Nitride	82
HCL1502	700	150	1497	50	209	259	Single-Acting, Load Return	Solid	Steel	213,8	1069	10%	Nitride	59
HCL1504	700	150	1497	100	259	359	Single-Acting, Load Return	Solid	Steel	213,8	2138	10%	Nitride	73
HCL1506	700	150	1497	150	309	459	Single-Acting, Load Return	Solid	Steel	213,8	3207	10%	Nitride	87
HCL1508	700	150	1497	200	359	559	Single-Acting, Load Return	Solid	Steel	213,8	4276	10%	Nitride	102
HCL15010	700	150	1497	250	409	659	Single-Acting, Load Return	Solid	Steel	213,8	5346	10%	Nitride	116
HCL15012	700	150	1497	300	459	759	Single-Acting, Load Return	Solid	Steel	213,8	6415	10%	Nitride	130
HCL2002	700	200	1985	50	238	288	Single-Acting, Load Return	Solid	Steel	283,5	1418	10%	Nitride	85
HCL2004	700	200	1985	100	288	388	Single-Acting, Load Return	Solid	Steel	283,5	2835	10%	Nitride	105
HCL2006	700	200	1985	150	338	488	Single-Acting, Load Return	Solid	Steel	283,5	4253	10%	Nitride	124
HCL2008	700	200	1985	200	388	588	Single-Acting, Load Return	Solid	Steel	283,5	5671	10%	Nitride	143
HCL20010	700	200	1985	250	438	688	Single-Acting, Load Return	Solid	Steel	283,5	7088	10%	Nitride	163
HCL20012	700	200	1985	300	488	788	Single-Acting, Load Return	Solid	Steel	283,5	8506	10%	Nitride	182
HCL2502	700	250	2541	50	249	299	Single-Acting, Load Return	Solid	Steel	363,1	1815	10%	Nitride	119
HCL2504	700	250	2541	100	299	399	Single-Acting, Load Return	Solid	Steel	363,1	3631	10%	Nitride	143
HCL2506	700	250	2541	150	349	499	Single-Acting, Load Return	Solid	Steel	363,1	5446	10%	Nitride	167
HCL2508	700	250	2541	200	399	599	Single-Acting, Load Return	Solid	Steel	363,1	7261	10%	Nitride	192
HCL25010	700	250	2541	250	449	699	Single-Acting, Load Return	Solid	Steel	363,1	9076	10%	Nitride	216
HCL25012	700	250	2541	300	499	799	Single-Acting, Load Return	Solid	Steel	363,1	10892	10%	Nitride	240
HCL3002	700	300	3036	50	278	328	Single-Acting, Load Return	Solid	Steel	433,7	2169	10%	Nitride	158
HCL3004	700	300	3036	100	328	428	Single-Acting, Load Return	Solid	Steel	433,7	4337	10%	Nitride	186
HCL3006	700	300	3036	150	378	528	Single-Acting, Load Return	Solid	Steel	433,7	6506	10%	Nitride	215
HCL3008	700	300	3036	200	428	628	Single-Acting, Load Return	Solid	Steel	433,7	8675	10%	Nitride	244
HCL30010	700	300	3036	250	478	728	Single-Acting, Load Return	Solid	Steel	433,7	10843	10%	Nitride	272
HCL30012	700	300	3036	300	528	828	Single-Acting, Load Return	Solid	Steel	433,7	13012	10%	Nitride	301
HCL4002	700	400	4008	50	317	367	Single-Acting, Load Return	Solid	Steel	572,6	2863	10%	Nitride	236
HCL4004	700	400	4008	100	367	467	Single-Acting, Load Return	Solid	Steel	572,6	5726	10%	Nitride	274
HCL4006	700	400	4008	150	417	567	Single-Acting, Load Return	Solid	Steel	572,6	8588	10%	Nitride	311
HCL4008	700	400	4008	200	467	667	Single-Acting, Load Return	Solid	Steel	572,6	11451	10%	Nitride	349
HCL40010	700	400	4008	250	517	767	Single-Acting, Load Return	Solid	Steel	572,6	14314	10%	Nitride	387
HCL40012	700	400	4008	300	567	867	Single-Acting, Load Return	Solid	Steel	572,6	17177	10%	Nitride	425
HCL5002	700	500	5114	50	357	407	Single-Acting, Load Return	Solid	Steel	730,6	3653	10%	Nitride	341
HCL5004	700	500	5114	100	407	507	Single-Acting, Load Return	Solid	Steel	730,6	7306	10%	Nitride	390
HCL5006	700	500	5114	150	457	607	Single-Acting, Load Return	Solid	Steel	730,6	10959	10%	Nitride	439
HCL5008	700	500	5114	200	507	707	Single-Acting, Load Return	Solid	Steel	730,6	14612	10%	Nitride	489
HCL50010	700	500	5114	250	557	807	Single-Acting, Load Return	Solid	Steel	730,6	18265	10%	Nitride	538
HCL50012	700	500	5114	300	607	907	Single-Acting, Load Return	Solid	Steel	730,6	21918	10%	Nitride	587
HCL6002	700	600	5987	50	380	430	Single-Acting, Load Return	Solid	Steel	855,3	4276	10%	Nitride	427
HCL6004	700	600	5987	100	430	530	Single-Acting, Load Return	Solid	Steel	855,3	8553	10%	Nitride	484
HCL6006	700	600	5987	150	480	630	Single-Acting, Load Return	Solid	Steel	855,3	12829	10%	Nitride	541
HCL6008	700	600	5987	200	530	730	Single-Acting, Load Return	Solid	Steel	855,3	17106	10%	Nitride	598
HCL60010	700	600	5987	250	580	830	Single-Acting, Load Return	Solid	Steel	855,3	21382	10%	Nitride	655
HCL60012	700	600	5987	300	630	930	Single-Acting, Load Return	Solid	Steel	855,3	25659	10%	Nitride	712
HCL8002	700	800	8149	50	430	480	Single-Acting, Load Return	Solid	Steel	1164,2	5821	10%	Nitride	668
HCL8004	700	800	8149	100	480	580	Single-Acting, Load Return	Solid	Steel	1164,2	11642	10%	Nitride	746
HCL8006	700	800	8149	150	530	680	Single-Acting, Load Return	Solid	Steel	1164,2	17462	10%	Nitride	825
HCL8008	700	800	8149	200	580	780	Single-Acting, Load Return	Solid	Steel	1164,2	23283	10%	Nitride	904
HCL80010	700	800	8149	250	630	880	Single-Acting, Load Return	Solid	Steel	1164,2	29104	10%	Nitride	982
HCL80012	700	800	8149	300	680	980	Single-Acting, Load Return	Solid	Steel	1164,2	34925	10%	Nitride	1061
HCL10002	700	1000	10644	50	484	534	Single-Acting, Load Return	Solid	Steel	1520,5	7603	10%	Nitride	959
HCL10004	700	1000	10644	100	534	634	Single-Acting, Load Return	Solid	Steel	1520,5	15205	10%	Nitride	1059
HCL10006	700	1000	10644	150	584	734	Single-Acting, Load Return	Solid	Steel	1520,5	22808	10%	Nitride	1160
HCL10008	700	1000	10644	200	634	834	Single-Acting, Load Return	Solid	Steel	1520,5	30411	10%	Nitride	1260
HCL100010	700	1000	10644	250	684	934	Single-Acting, Load Return	Solid	Steel	1520,5	38013	10%	Nitride	1360
HCL100012	700	1000	10644	300	734	1034	Single-Acting, Load Return	Solid	Steel	1520,5	45616	10%	Nitride	1460
