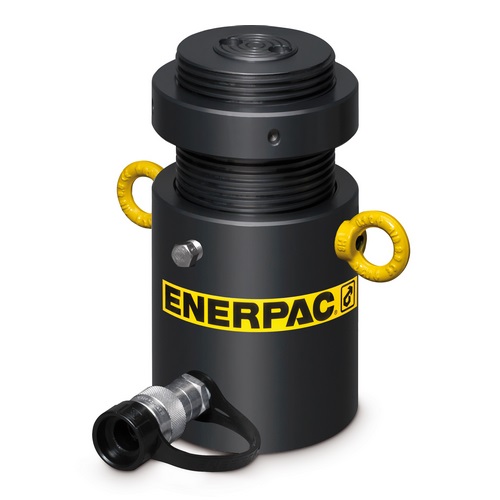

Kích thủy lực 1 chiều Enerpac HCL

Kích thủy lực có đai ốc hãm Enerpac HCL-1006

Model : HCL-1006

Tải trọng : 100 tấn

Hãng sản xuất : ENERPAC

Bảo hành : 12 tháng

Danh mục:
Model Number Maximum Operating Pressure (bar) Capacity Class (tonnage) Maximum Cylinder Capacity Advance (kN) Stroke (mm) Collapsed Height A (mm) Extended Height B (mm) Return Type Plunger Type Material Cylinder Effective Area Advance (cm2) Oil Capacity Advance (cm3) Sideload Resistance of Maximum Capacity (percentage) Surface Treatment Weight (kg)
HCL502 700 50 550 50 164 214 Single-Acting, Load Return Solid Steel 78,5 393 10% Nitride 17
HCL504 700 50 550 100 214 314 Single-Acting, Load Return Solid Steel 78,5 785 10% Nitride 22
HCL506 700 50 550 150 264 414 Single-Acting, Load Return Solid Steel 78,5 1178 10% Nitride 27
HCL508 700 50 550 200 314 514 Single-Acting, Load Return Solid Steel 78,5 1571 10% Nitride 32
HCL5010 700 50 550 250 364 614 Single-Acting, Load Return Solid Steel 78,5 1963 10% Nitride 38
HCL5012 700 50 550 300 414 714 Single-Acting, Load Return Solid Steel 78,5 2356 10% Nitride 43
HCL1002 700 100 1002 50 187 237 Single-Acting, Load Return Solid Steel 143,1 716 10% Nitride 35
HCL1004 700 100 1002 100 237 337 Single-Acting, Load Return Solid Steel 143,1 1431 10% Nitride 44
HCL1006 700 100 1002 150 287 437 Single-Acting, Load Return Solid Steel 143,1 2147 10% Nitride 54
HCL1008 700 100 1002 200 337 537 Single-Acting, Load Return Solid Steel 143,1 2863 10% Nitride 63
HCL10010 700 100 1002 250 387 637 Single-Acting, Load Return Solid Steel 143,1 3578 10% Nitride 73
HCL10012 700 100 1002 300 437 737 Single-Acting, Load Return Solid Steel 143,1 4294 10% Nitride 82
HCL1502 700 150 1497 50 209 259 Single-Acting, Load Return Solid Steel 213,8 1069 10% Nitride 59
HCL1504 700 150 1497 100 259 359 Single-Acting, Load Return Solid Steel 213,8 2138 10% Nitride 73
HCL1506 700 150 1497 150 309 459 Single-Acting, Load Return Solid Steel 213,8 3207 10% Nitride 87
HCL1508 700 150 1497 200 359 559 Single-Acting, Load Return Solid Steel 213,8 4276 10% Nitride 102
HCL15010 700 150 1497 250 409 659 Single-Acting, Load Return Solid Steel 213,8 5346 10% Nitride 116
HCL15012 700 150 1497 300 459 759 Single-Acting, Load Return Solid Steel 213,8 6415 10% Nitride 130
HCL2002 700 200 1985 50 238 288 Single-Acting, Load Return Solid Steel 283,5 1418 10% Nitride 85
HCL2004 700 200 1985 100 288 388 Single-Acting, Load Return Solid Steel 283,5 2835 10% Nitride 105
HCL2006 700 200 1985 150 338 488 Single-Acting, Load Return Solid Steel 283,5 4253 10% Nitride 124
HCL2008 700 200 1985 200 388 588 Single-Acting, Load Return Solid Steel 283,5 5671 10% Nitride 143
HCL20010 700 200 1985 250 438 688 Single-Acting, Load Return Solid Steel 283,5 7088 10% Nitride 163
HCL20012 700 200 1985 300 488 788 Single-Acting, Load Return Solid Steel 283,5 8506 10% Nitride 182
HCL2502 700 250 2541 50 249 299 Single-Acting, Load Return Solid Steel 363,1 1815 10% Nitride 119
HCL2504 700 250 2541 100 299 399 Single-Acting, Load Return Solid Steel 363,1 3631 10% Nitride 143
HCL2506 700 250 2541 150 349 499 Single-Acting, Load Return Solid Steel 363,1 5446 10% Nitride 167
HCL2508 700 250 2541 200 399 599 Single-Acting, Load Return Solid Steel 363,1 7261 10% Nitride 192
HCL25010 700 250 2541 250 449 699 Single-Acting, Load Return Solid Steel 363,1 9076 10% Nitride 216
HCL25012 700 250 2541 300 499 799 Single-Acting, Load Return Solid Steel 363,1 10892 10% Nitride 240
HCL3002 700 300 3036 50 278 328 Single-Acting, Load Return Solid Steel 433,7 2169 10% Nitride 158
HCL3004 700 300 3036 100 328 428 Single-Acting, Load Return Solid Steel 433,7 4337 10% Nitride 186
HCL3006 700 300 3036 150 378 528 Single-Acting, Load Return Solid Steel 433,7 6506 10% Nitride 215
HCL3008 700 300 3036 200 428 628 Single-Acting, Load Return Solid Steel 433,7 8675 10% Nitride 244
HCL30010 700 300 3036 250 478 728 Single-Acting, Load Return Solid Steel 433,7 10843 10% Nitride 272
HCL30012 700 300 3036 300 528 828 Single-Acting, Load Return Solid Steel 433,7 13012 10% Nitride 301
HCL4002 700 400 4008 50 317 367 Single-Acting, Load Return Solid Steel 572,6 2863 10% Nitride 236
HCL4004 700 400 4008 100 367 467 Single-Acting, Load Return Solid Steel 572,6 5726 10% Nitride 274
HCL4006 700 400 4008 150 417 567 Single-Acting, Load Return Solid Steel 572,6 8588 10% Nitride 311
HCL4008 700 400 4008 200 467 667 Single-Acting, Load Return Solid Steel 572,6 11451 10% Nitride 349
HCL40010 700 400 4008 250 517 767 Single-Acting, Load Return Solid Steel 572,6 14314 10% Nitride 387
HCL40012 700 400 4008 300 567 867 Single-Acting, Load Return Solid Steel 572,6 17177 10% Nitride 425
HCL5002 700 500 5114 50 357 407 Single-Acting, Load Return Solid Steel 730,6 3653 10% Nitride 341
HCL5004 700 500 5114 100 407 507 Single-Acting, Load Return Solid Steel 730,6 7306 10% Nitride 390
HCL5006 700 500 5114 150 457 607 Single-Acting, Load Return Solid Steel 730,6 10959 10% Nitride 439
HCL5008 700 500 5114 200 507 707 Single-Acting, Load Return Solid Steel 730,6 14612 10% Nitride 489
HCL50010 700 500 5114 250 557 807 Single-Acting, Load Return Solid Steel 730,6 18265 10% Nitride 538
HCL50012 700 500 5114 300 607 907 Single-Acting, Load Return Solid Steel 730,6 21918 10% Nitride 587
HCL6002 700 600 5987 50 380 430 Single-Acting, Load Return Solid Steel 855,3 4276 10% Nitride 427
HCL6004 700 600 5987 100 430 530 Single-Acting, Load Return Solid Steel 855,3 8553 10% Nitride 484
HCL6006 700 600 5987 150 480 630 Single-Acting, Load Return Solid Steel 855,3 12829 10% Nitride 541
HCL6008 700 600 5987 200 530 730 Single-Acting, Load Return Solid Steel 855,3 17106 10% Nitride 598
HCL60010 700 600 5987 250 580 830 Single-Acting, Load Return Solid Steel 855,3 21382 10% Nitride 655
HCL60012 700 600 5987 300 630 930 Single-Acting, Load Return Solid Steel 855,3 25659 10% Nitride 712
HCL8002 700 800 8149 50 430 480 Single-Acting, Load Return Solid Steel 1164,2 5821 10% Nitride 668
HCL8004 700 800 8149 100 480 580 Single-Acting, Load Return Solid Steel 1164,2 11642 10% Nitride 746
HCL8006 700 800 8149 150 530 680 Single-Acting, Load Return Solid Steel 1164,2 17462 10% Nitride 825
HCL8008 700 800 8149 200 580 780 Single-Acting, Load Return Solid Steel 1164,2 23283 10% Nitride 904
HCL80010 700 800 8149 250 630 880 Single-Acting, Load Return Solid Steel 1164,2 29104 10% Nitride 982
HCL80012 700 800 8149 300 680 980 Single-Acting, Load Return Solid Steel 1164,2 34925 10% Nitride 1061
HCL10002 700 1000 10644 50 484 534 Single-Acting, Load Return Solid Steel 1520,5 7603 10% Nitride 959
HCL10004 700 1000 10644 100 534 634 Single-Acting, Load Return Solid Steel 1520,5 15205 10% Nitride 1059
HCL10006 700 1000 10644 150 584 734 Single-Acting, Load Return Solid Steel 1520,5 22808 10% Nitride 1160
HCL10008 700 1000 10644 200 634 834 Single-Acting, Load Return Solid Steel 1520,5 30411 10% Nitride 1260
HCL100010 700 1000 10644 250 684 934 Single-Acting, Load Return Solid Steel 1520,5 38013 10% Nitride 1360
HCL100012 700 1000 10644 300 734 1034 Single-Acting, Load Return Solid Steel 1520,5 45616 10% Nitride 1460



Sản phẩm tương tự

Kích thủy lực 1 chiều Enerpac HCL

Kích thủy lực có đai ốc hãm

Kích thủy lực có đai ốc hãm Enerpac HCL-2006

Kích thủy lực 1 chiều Enerpac HCL

Kích thủy lực có đai ốc hãm

Kích thủy lực có đai ốc hãm Enerpac HCL-502

Kích thủy lực 1 chiều Enerpac HCL

Kích thủy lực có đai ốc hãm

Kích thủy lực có đai ốc hãm Enerpac HCL-4006

Kích thủy lực 1 chiều Enerpac HCL

Kích thủy lực có đai ốc hãm

Kích thủy lực có đai ốc hãm Enerpac HCL-10006

Kích thủy lực 1 chiều Enerpac HCL

Kích thủy lực có đai ốc hãm

Kích thủy lực có đai ốc hãm Enerpac HCL-6006

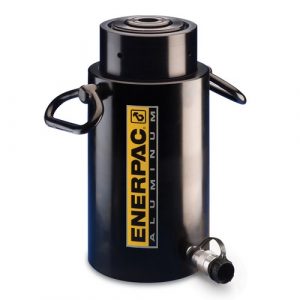

Kích thủy lực 1 chiều Enerpac RACL

Kích thủy lực có đai ốc hãm

Kích nhôm thủy lực có đai ốc hãm Enerpac RACL

Kích đai ốc hãm Enerpac HCRL series

Kích thủy lực có đai ốc hãm

Kích đai ốc hãm Enerpac HCRL series

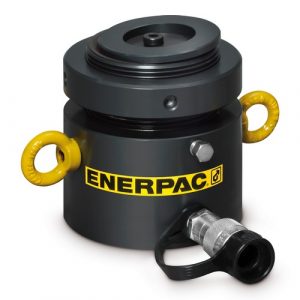

Kích thủy lực 1 chiều lùn Enerpac LPL
