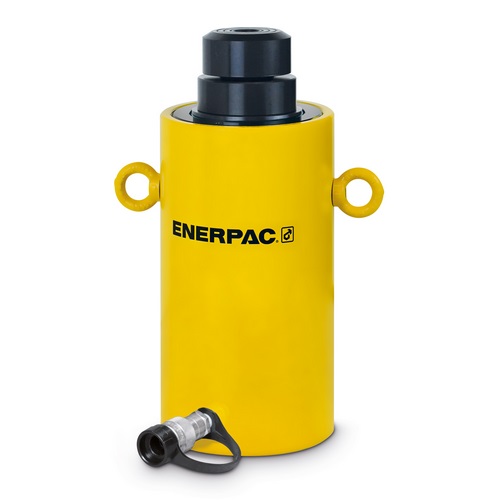

Kích thủy lực 1 chiều Enerpac RT

Kích thủy lực 2 tầng Enerpac RT-1510

Model : RT-1510

Tải trọng : 15 tấn

Hãng sản xuất : ENERPAC

Bảo hành : 12 tháng

Danh mục: Kích thủy lực nhiều tầng, Kích thủy lực 1 chiều

Mô tả

Model Number	Maximum Operating Pressure (bar)	Capacity Class (tonnage)	Maximum Cylinder Capacity Advance (kN)	Stroke (mm)	Collapsed Height A (mm)	Extended Height B (mm)	Return Type	Plunger Type	Material	Oil Capacity Advance (cm³)	Stage 1 Capacity (kN)	Stage 1 Stroke S1 (mm)	Stage 2 Capacity (kN)	Stage 2 Stroke S2 (mm)	Stage 3 Capacity (kN)	Stage 3 Stroke S3 (mm)	Surface Treatment	Weight (kg)
RT1510	700	15	137	270	283	553	Single-Acting, Load Return	Telescopic	Steel	944	352	135	137	135	–	–	Nitride	15,1
RT1817	700	20	166	435	345	780	Single-Acting, Load Return	Telescopic	Steel	3092	929	145	397	145	166	145	Nitride	40,3
RT2111	700	20	198	300	317	617	Single-Acting, Load Return	Telescopic	Steel	1487	496	150	198	150	–	–	Nitride	21,8
RT2119	700	20	198	500	395	895	Single-Acting, Load Return	Telescopic	Steel	4661	1237	170	496	170	198	160	Nitride	67,3
RT3311	700	35	309	300	352	652	Single-Acting, Load Return	Telescopic	Steel	2359	792	150	309	150	–	–	Nitride	39,9
RT3323	700	35	309	600	476	1076	Single-Acting, Load Return	Telescopic	Steel	8816	1985	200	792	200	309	200	Nitride	124,0
