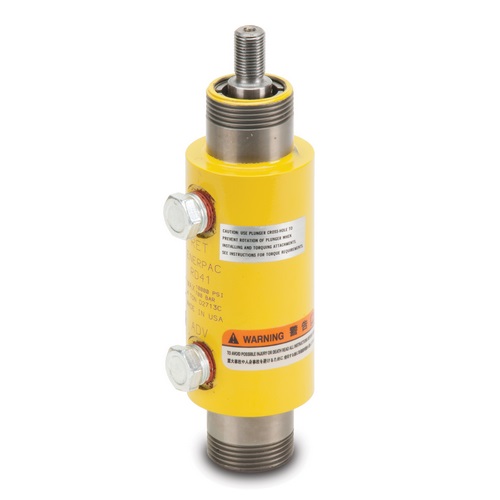

Kích thủy lực 2 chiều Enerpac RD

Model Number	Maximum Operating Pressure (bar)	Minimum Operating Pressure (bar)	Capacity Class (tonnage)	Stroke (mm)	Extended Height B (mm)	Return Type	Plunger Type	Material	Cylinder Effective Area Advance (cm²)	Cylinder Effective Area Retract (cm²)	Oil Capacity Advance (cm³)	Oil Capacity Retract (cm³)	Cylinder Capacity Advance At 350 (bar)	Cylinder Capacity Retract At 350 (bar)	Surface Treatment	Weight (kg)
RD41	700	35	4	28	214	Double-Acting, Hydraulic Return	Solid	Steel	5,1	2,2	14	6	17,4	7,7	Paint	2,0
RD43	700	35	4	79	316	Double-Acting, Hydraulic Return	Solid	Steel	5,1	2,2	40	17	17,4	7,7	Paint	2,6
RD46	700	35	4	155	468	Double-Acting, Hydraulic Return	Solid	Steel	5,1	2,2	79	34	17,4	7,7	Paint	3,6
RD91	700	35	9	28	251	Double-Acting, Hydraulic Return	Solid	Steel	11,4	6,3	32	18	40,0	21,8	Paint	3,0
RD93	700	35	9	79	353	Double-Acting, Hydraulic Return	Solid	Steel	11,4	6,3	90	50	40,0	21,8	Paint	4,2
RD96	700	35	9	155	505	Double-Acting, Hydraulic Return	Solid	Steel	11,4	6,3	177	98	40,0	21,8	Paint	5,6
RD910	700	35	9	257	709	Double-Acting, Hydraulic Return	Solid	Steel	11,4	6,3	293	162	40,0	21,8	Paint	7,3
RD166	700	35	16	159	548	Double-Acting, Hydraulic Return	Solid	Steel	20,3	10,6	323	169	69,0	36,9	Paint	10,2
RD1610	700	35	16	260	751	Double-Acting, Hydraulic Return	Solid	Steel	20,3	10,6	528	276	69,0	36,9	Paint	14,5
RD256	700	35	25	159	583	Double-Acting, Hydraulic Return	Solid	Steel	31,7	13,7	504	218	109,0	47,8	Paint	16,0
RD2510	700	35	25	260	786	Double-Acting, Hydraulic Return	Solid	Steel	31,7	13,7	824	356	109,0	47,8	Paint	20,3
