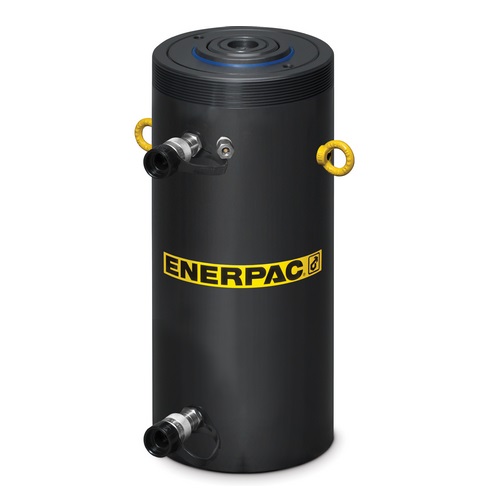

Kích thủy lực 2 chiều Enerpac HCR

Kích thủy lực 2 chiều Enerpac HCR

Model : HCR Series

Tải trọng : 50 – 1000 tấn

Hãng sản xuất : ENERPAC

Bảo hành : 12 tháng

Danh mục:
Model Number Maximum Operating Pressure (bar) Capacity Class (tonnage) Maximum Cylinder Capacity Advance (kN) Stroke (mm) Collapsed Height A (mm) Extended Height B (mm) Return Type Plunger Type Material Cylinder Effective Area Advance (cm2) Oil Capacity Advance (cm3) Sideload Resistance of Maximum Capacity (percentage) Surface Treatment Weight (kg)
HCR502 700 50 550 50 183 233 Double-Acting, Hydraulic Return Solid Steel 78,5 393 10% Nitride 17
HCR504 700 50 550 100 233 333 Double-Acting, Hydraulic Return Solid Steel 78,5 785 10% Nitride 21
HCR506 700 50 550 150 283 433 Double-Acting, Hydraulic Return Solid Steel 78,5 1178 7% Nitride 25
HCR508 700 50 550 200 346 546 Double-Acting, Hydraulic Return Solid Steel 78,5 1571 10% Nitride 31
HCR5010 700 50 550 250 396 646 Double-Acting, Hydraulic Return Solid Steel 78,5 1963 10% Nitride 34
HCR5012 700 50 550 300 446 746 Double-Acting, Hydraulic Return Solid Steel 78,5 2356 7% Nitride 38
HCR1002 700 100 1002 50 202 252 Double-Acting, Hydraulic Return Solid Steel 143,1 716 10% Nitride 34
HCR1004 700 100 1002 100 252 352 Double-Acting, Hydraulic Return Solid Steel 143,1 1431 10% Nitride 41
HCR1006 700 100 1002 150 302 452 Double-Acting, Hydraulic Return Solid Steel 143,1 2147 10% Nitride 48
HCR1008 700 100 1002 200 379 579 Double-Acting, Hydraulic Return Solid Steel 143,1 2863 10% Nitride 59
HCR10010 700 100 1002 250 429 679 Double-Acting, Hydraulic Return Solid Steel 143,1 3578 10% Nitride 66
HCR10012 700 100 1002 300 479 779 Double-Acting, Hydraulic Return Solid Steel 143,1 4294 10% Nitride 73
HCR1502 700 150 1497 50 220 270 Double-Acting, Hydraulic Return Solid Steel 213,8 1069 10% Nitride 56
HCR1504 700 150 1497 100 270 370 Double-Acting, Hydraulic Return Solid Steel 213,8 2138 10% Nitride 67
HCR1506 700 150 1497 150 320 470 Double-Acting, Hydraulic Return Solid Steel 213,8 3207 10% Nitride 78
HCR1508 700 150 1497 200 397 597 Double-Acting, Hydraulic Return Solid Steel 213,8 4276 10% Nitride 95
HCR15010 700 150 1497 250 447 697 Double-Acting, Hydraulic Return Solid Steel 213,8 5346 10% Nitride 106
HCR15012 700 150 1497 300 497 797 Double-Acting, Hydraulic Return Solid Steel 213,8 6415 10% Nitride 116
HCR2002 700 200 1985 50 231 281 Double-Acting, Hydraulic Return Solid Steel 283,5 1418 10% Nitride 81
HCR2004 700 200 1985 100 281 381 Double-Acting, Hydraulic Return Solid Steel 283,5 2835 10% Nitride 96
HCR2006 700 200 1985 150 331 481 Double-Acting, Hydraulic Return Solid Steel 283,5 4253 10% Nitride 111
HCR2008 700 200 1985 200 408 608 Double-Acting, Hydraulic Return Solid Steel 283,5 5671 10% Nitride 139
HCR20010 700 200 1985 250 458 708 Double-Acting, Hydraulic Return Solid Steel 283,5 7088 10% Nitride 153
HCR20012 700 200 1985 300 508 808 Double-Acting, Hydraulic Return Solid Steel 283,5 8506 10% Nitride 168
HCR2502 700 250 2541 50 241 291 Double-Acting, Hydraulic Return Solid Steel 363,1 1815 10% Nitride 107
HCR2504 700 250 2541 100 291 391 Double-Acting, Hydraulic Return Solid Steel 363,1 3631 10% Nitride 127
HCR2506 700 250 2541 150 341 491 Double-Acting, Hydraulic Return Solid Steel 363,1 5446 10% Nitride 146
HCR2508 700 250 2541 200 431 631 Double-Acting, Hydraulic Return Solid Steel 363,1 7261 10% Nitride 184
HCR25010 700 250 2541 250 481 731 Double-Acting, Hydraulic Return Solid Steel 363,1 9076 10% Nitride 207
HCR25012 700 250 2541 300 531 831 Double-Acting, Hydraulic Return Solid Steel 363,1 10892 10% Nitride 227
HCR3002 700 300 3036 50 296 346 Double-Acting, Hydraulic Return Solid Steel 433,7 2169 10% Nitride 159
HCR3004 700 300 3036 100 346 446 Double-Acting, Hydraulic Return Solid Steel 433,7 4337 10% Nitride 183
HCR3006 700 300 3036 150 396 546 Double-Acting, Hydraulic Return Solid Steel 433,7 6506 10% Nitride 208
HCR3008 700 300 3036 200 446 646 Double-Acting, Hydraulic Return Solid Steel 433,7 8675 10% Nitride 232
HCR30010 700 300 3036 250 496 746 Double-Acting, Hydraulic Return Solid Steel 433,7 10843 10% Nitride 257
HCR30012 700 300 3036 300 546 846 Double-Acting, Hydraulic Return Solid Steel 433,7 13012 10% Nitride 281
HCR4002 700 400 4008 50 321 371 Double-Acting, Hydraulic Return Solid Steel 572,6 2863 10% Nitride 227
HCR4004 700 400 4008 100 371 471 Double-Acting, Hydraulic Return Solid Steel 572,6 5726 10% Nitride 258
HCR4006 700 400 4008 150 421 571 Double-Acting, Hydraulic Return Solid Steel 572,6 8588 10% Nitride 289
HCR4008 700 400 4008 200 471 671 Double-Acting, Hydraulic Return Solid Steel 572,6 11451 10% Nitride 321
HCR40010 700 400 4008 250 521 771 Double-Acting, Hydraulic Return Solid Steel 572,6 14314 10% Nitride 352
HCR40012 700 400 4008 300 571 871 Double-Acting, Hydraulic Return Solid Steel 572,6 17177 10% Nitride 383
HCR5002 700 500 5114 50 344 394 Double-Acting, Hydraulic Return Solid Steel 730,6 3653 10% Nitride 320
HCR5004 700 500 5114 100 394 494 Double-Acting, Hydraulic Return Solid Steel 730,6 7306 10% Nitride 361
HCR5006 700 500 5114 150 444 594 Double-Acting, Hydraulic Return Solid Steel 730,6 10959 10% Nitride 402
HCR5008 700 500 5114 200 494 694 Double-Acting, Hydraulic Return Solid Steel 730,6 14612 10% Nitride 443
HCR50010 700 500 5114 250 544 794 Double-Acting, Hydraulic Return Solid Steel 730,6 18265 10% Nitride 484
HCR50012 700 500 5114 300 594 894 Double-Acting, Hydraulic Return Solid Steel 730,6 21918 10% Nitride 525
HCR6002 700 600 5987 50 352 402 Double-Acting, Hydraulic Return Solid Steel 855,3 4276 10% Nitride 379
HCR6004 700 600 5987 100 402 502 Double-Acting, Hydraulic Return Solid Steel 855,3 8553 10% Nitride 427
HCR6006 700 600 5987 150 452 602 Double-Acting, Hydraulic Return Solid Steel 855,3 12829 10% Nitride 474
HCR6008 700 600 5987 200 502 702 Double-Acting, Hydraulic Return Solid Steel 855,3 17106 10% Nitride 521
HCR60010 700 600 5987 250 552 802 Double-Acting, Hydraulic Return Solid Steel 855,3 21382 10% Nitride 568
HCR60012 700 600 5987 300 602 902 Double-Acting, Hydraulic Return Solid Steel 855,3 25659 10% Nitride 615
HCR8002 700 800 8149 50 404 454 Double-Acting, Hydraulic Return Solid Steel 1164,2 5821 10% Nitride 608
HCR8004 700 800 8149 100 454 554 Double-Acting, Hydraulic Return Solid Steel 1164,2 11642 10% Nitride 674
HCR8006 700 800 8149 150 504 654 Double-Acting, Hydraulic Return Solid Steel 1164,2 17462 10% Nitride 740
HCR8008 700 800 8149 200 554 754 Double-Acting, Hydraulic Return Solid Steel 1164,2 23283 10% Nitride 806
HCR80010 700 800 8149 250 604 854 Double-Acting, Hydraulic Return Solid Steel 1164,2 29104 10% Nitride 872
HCR80012 700 800 8149 300 654 954 Double-Acting, Hydraulic Return Solid Steel 1164,2 34925 10% Nitride 938
HCR10002 700 1000 10644 50 442 492 Double-Acting, Hydraulic Return Solid Steel 1520,5 7603 10% Nitride 843
HCR10004 700 1000 10644 100 492 592 Double-Acting, Hydraulic Return Solid Steel 1520,5 15205 10% Nitride 921
HCR10006 700 1000 10644 150 542 692 Double-Acting, Hydraulic Return Solid Steel 1520,5 22808 10% Nitride 1000
HCR10008 700 1000 10644 200 592 792 Double-Acting, Hydraulic Return Solid Steel 1520,5 30411 10% Nitride 1079
HCR100010 700 1000 10644 250 642 892 Double-Acting, Hydraulic Return Solid Steel 1520,5 38013 10% Nitride 1158
HCR100012 700 1000 10644 300 692 992 Double-Acting, Hydraulic Return Solid Steel 1520,5 45616 10% Nitride 1236
