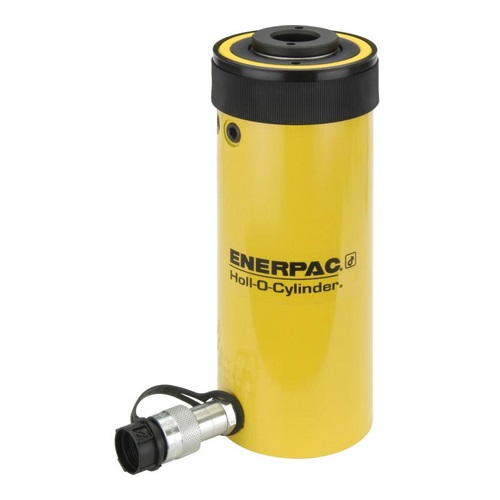

Kích thủy lực 1 chiều rỗng tâm Enerpac RCH

Kích rỗng tâm Enerpac RCH-302 (30 tấn)

Model : RCH-302

Tải trọng : 30 tấn

Hãng sản xuất : ENERPAC

Bảo hành : 12 tháng

Danh mục: Kích thủy lực rỗng tâm, Kích thủy lực 1 chiều

Mô tả

Model Number	Maximum Operating Pressure (bar)	Capacity Class (tonnage)	Maximum Cylinder Capacity Advance (kN)	Stroke (mm)	Collapsed Height A (mm)	Extended Height B (mm)	Return Type	Plunger Type	Material	Cylinder Effective Area Advance (cm²)	Oil Capacity Advance (cm³)	Surface Treatment	Weight (kg)
RCH120	700	12	125	8	55	63	Single-Acting, Spring Return	Hollow	Steel	17,9	14	Paint	1,5
RCH121	700	12	125	42	120	162	Single-Acting, Spring Return	Hollow	Steel	17,9	75	Paint	2,8
RCH1211	700	12	125	42	120	162	Single-Acting, Spring Return	Hollow	Steel	17,9	75	Paint	2,8
RCH123	700	12	125	76	184	260	Single-Acting, Spring Return	Hollow	Steel	17,9	136	Paint	4,4
RCH202	700	20	215	49	162	211	Single-Acting, Spring Return	Hollow	Steel	30,7	150	Paint	7,7
RCH206	700	20	215	155	306	461	Single-Acting, Spring Return	Hollow	Steel	30,7	476	Paint	14,1
RCH302	700	30	326	64	178	242	Single-Acting, Spring Return	Hollow	Steel	46,6	298	Paint	10,9
RCH306	700	30	326	155	330	485	Single-Acting, Spring Return	Hollow	Steel	46,6	722	Paint	21,8
RCH603	700	60	576	76	247	323	Single-Acting, Spring Return	Hollow	Steel	82,3	626	Paint	28,1
RCH606	700	60	576	153	323	476	Single-Acting, Spring Return	Hollow	Steel	82,3	1259	Paint	35,4
RCH1003	700	100	931	76	254	330	Single-Acting, Spring Return	Hollow	Steel	133,0	1011	Paint	63,0
