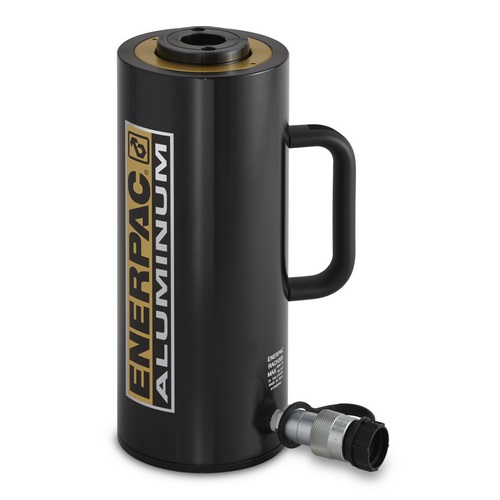

Kích thủy lực 1 chiều rỗng tâm Enerpac RACH

Kích rỗng tâm Enerpac RACH

Model : RACH Series

Tải trọng : 20 – 150 tấn

Hãng sản xuất : ENERPAC

Bảo hành : 12 tháng

Danh mục: Kích thủy lực rỗng tâm, Kích thủy lực 1 chiều, Kích nhôm thủy lực

Mô tả

Model Number	Maximum Operating Pressure (bar)	Capacity Class (tonnage)	Maximum Cylinder Capacity Advance (kN)	Stroke (mm)	Collapsed Height A (mm)	Extended Height B (mm)	Return Type	Plunger Type	Material	Cylinder Effective Area Advance (cm²)	Oil Capacity Advance (cm³)	Surface Treatment	Weight (kg)
RACH202	700	20	229	50	188	238	Single-Acting, Spring Return	Hollow	Aluminum	32,7	164	Anodized	5,2
RACH204	700	20	229	100	251	351	Single-Acting, Spring Return	Hollow	Aluminum	32,7	327	Anodized	6,1
RACH206	700	20	229	150	315	465	Single-Acting, Spring Return	Hollow	Aluminum	32,7	491	Anodized	7,1
RACH208	700	20	229	200	378	578	Single-Acting, Spring Return	Hollow	Aluminum	32,7	654	Anodized	8,0
RACH2010	700	20	229	250	442	692	Single-Acting, Spring Return	Hollow	Aluminum	32,7	818	Anodized	9,0
RACH302	700	30	358	50	208	258	Single-Acting, Spring Return	Hollow	Aluminum	51,1	256	Anodized	8,0
RACH304	700	30	358	100	267	367	Single-Acting, Spring Return	Hollow	Aluminum	51,1	511	Anodized	9,5
RACH306	700	30	358	150	333	483	Single-Acting, Spring Return	Hollow	Aluminum	51,1	766	Anodized	11,2
RACH308	700	30	358	200	395	595	Single-Acting, Spring Return	Hollow	Aluminum	51,1	1022	Anodized	12,9
RACH3010	700	30	358	250	458	708	Single-Acting, Spring Return	Hollow	Aluminum	51,1	1277	Anodized	14,5
RACH602	700	60	596	50	251	301	Single-Acting, Spring Return	Hollow	Aluminum	84,7	423	Anodized	16,2
RACH604	700	60	596	100	315	415	Single-Acting, Spring Return	Hollow	Aluminum	84,7	847	Anodized	19,5
RACH606	700	60	596	150	380	530	Single-Acting, Spring Return	Hollow	Aluminum	84,7	1270	Anodized	25,6
RACH608	700	60	596	200	445	645	Single-Acting, Spring Return	Hollow	Aluminum	84,7	1694	Anodized	26,0
RACH6010	700	60	596	250	510	760	Single-Acting, Spring Return	Hollow	Aluminum	84,7	2117	Anodized	29,6
RACH1002	700	100	1157	50	258	308	Single-Acting, Spring Return	Hollow	Aluminum	164,6	823	Anodized	33,8
RACH1004	700	100	1157	100	325	425	Single-Acting, Spring Return	Hollow	Aluminum	164,6	1646	Anodized	39,8
RACH1006	700	100	1157	150	391	541	Single-Acting, Spring Return	Hollow	Aluminum	164,6	2487	Anodized	46,2
RACH1008	700	100	1157	200	459	659	Single-Acting, Spring Return	Hollow	Aluminum	164,6	3291	Anodized	52,2
RACH10010	700	100	1157	250	527	777	Single-Acting, Spring Return	Hollow	Aluminum	164,6	4114	Anodized	58,8
RACH1502	700	150	1588	50	280	330	Single-Acting, Spring Return	Hollow	Aluminum	225,8	1129	Anodized	48,9
RACH1504	700	150	1588	100	360	460	Single-Acting, Spring Return	Hollow	Aluminum	225,8	2258	Anodized	55,7
RACH1506	700	150	1588	150	430	580	Single-Acting, Spring Return	Hollow	Aluminum	225,8	3387	Anodized	63,0
RACH1508	700	150	1588	200	500	700	Single-Acting, Spring Return	Hollow	Aluminum	225,8	4517	Anodized	70,1
RACH15010	700	150	1588	250	570	820	Single-Acting, Spring Return	Hollow	Aluminum	225,8	5646	Anodized	77,2
