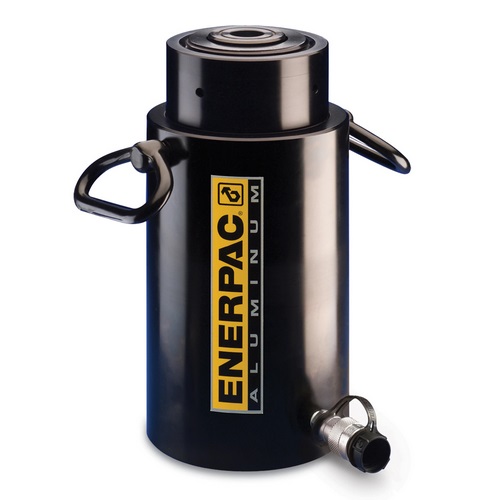

Kích nhôm thủy lực có đai ốc hãm Enerpac RACL

Model : RACL Series

Tải trọng : 20 – 150 tấn

Hãng sản xuất : ENERPAC

Bảo hành : 12 tháng

Danh mục: Kích thủy lực có đai ốc hãm, Kích thủy lực 1 chiều, Kích nhôm thủy lực

Mô tả

Model Number	Maximum Operating Pressure (bar)	Capacity Class (tonnage)	Maximum Cylinder Capacity Advance (kN)	Stroke (mm)	Collapsed Height A (mm)	Extended Height B (mm)	Return Type	Plunger Type	Material	Cylinder Effective Area Advance (cm²)	Oil Capacity Advance (cm³)	Surface Treatment	Weight (kg)
RACL202	700	20	218	50	224	274	Single-Acting, Spring Return	Solid	Aluminum	31,2	156	Anodized	4,0
RACL204	700	20	218	100	274	374	Single-Acting, Spring Return	Solid	Aluminum	31,2	312	Anodized	4,6
RACL206	700	20	218	150	324	474	Single-Acting, Spring Return	Solid	Aluminum	31,2	468	Anodized	5,2
RACL208	700	20	218	200	374	574	Single-Acting, Spring Return	Solid	Aluminum	31,2	624	Anodized	5,8
RACL2010	700	20	218	250	424	674	Single-Acting, Spring Return	Solid	Aluminum	31,2	780	Anodized	6,4
RACL302	700	30	309	50	231	281	Single-Acting, Spring Return	Solid	Aluminum	44,2	221	Anodized	5,4
RACL304	700	30	309	100	281	381	Single-Acting, Spring Return	Solid	Aluminum	44,2	442	Anodized	6,1
RACL306	700	30	309	150	331	481	Single-Acting, Spring Return	Solid	Aluminum	44,2	663	Anodized	6,8
RACL308	700	30	309	200	381	581	Single-Acting, Spring Return	Solid	Aluminum	44,2	883	Anodized	7,5
RACL3010	700	30	309	250	431	681	Single-Acting, Spring Return	Solid	Aluminum	44,2	1105	Anodized	8,2
RACL502	700	50	496	50	236	286	Single-Acting, Spring Return	Solid	Aluminum	70,9	354	Anodized	9,3
RACL504	700	50	496	100	286	386	Single-Acting, Spring Return	Solid	Aluminum	70,9	709	Anodized	10,6
RACL506	700	50	496	150	336	486	Single-Acting, Spring Return	Solid	Aluminum	70,9	1063	Anodized	12,6
RACL508	700	50	496	200	386	586	Single-Acting, Spring Return	Solid	Aluminum	70,9	1417	Anodized	13,2
RACL5010	700	50	496	250	436	686	Single-Acting, Spring Return	Solid	Aluminum	70,9	1771	Anodized	14,5
RACL1002	700	100	1002	50	296	346	Single-Acting, Spring Return	Solid	Aluminum	143,1	716	Anodized	21,9
RACL1004	700	100	1002	100	346	446	Single-Acting, Spring Return	Solid	Aluminum	143,1	1431	Anodized	24,2
RACL1006	700	100	1002	150	396	546	Single-Acting, Spring Return	Solid	Aluminum	143,1	2147	Anodized	26,5
RACL1008	700	100	1002	200	446	646	Single-Acting, Spring Return	Solid	Aluminum	143,1	2863	Anodized	28,8
RACL10010	700	100	1002	250	496	746	Single-Acting, Spring Return	Solid	Aluminum	143,1	3578	Anodized	31,1
RACL1502	700	150	1589	50	323	373	Single-Acting, Spring Return	Solid	Aluminum	227,0	1135	Anodized	32,2
RACL1504	700	150	1589	100	373	473	Single-Acting, Spring Return	Solid	Aluminum	227,0	2270	Anodized	36,2
RACL1506	700	150	1589	150	423	573	Single-Acting, Spring Return	Solid	Aluminum	227,0	3405	Anodized	40,2
RACL1508	700	150	1589	200	473	673	Single-Acting, Spring Return	Solid	Aluminum	227,0	4540	Anodized	44,2
RACL15010	700	150	1589	250	523	773	Single-Acting, Spring Return	Solid	Aluminum	227,0	5675	Anodized	48,2
