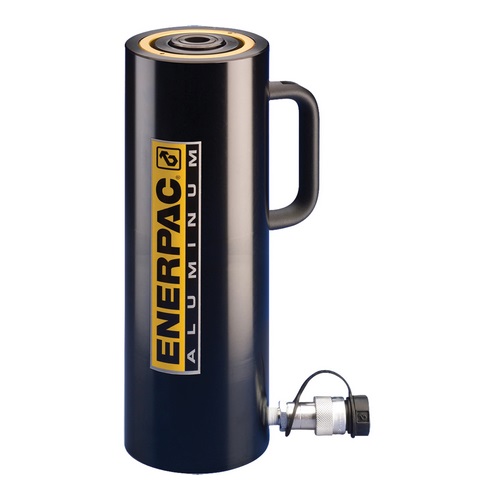

Kích nhôm thủy lực 1 chiều Enerpac RAC

Model : RAC Series

Tải trọng : 10 – 150 tấn

Hãng sản xuất : ENERPAC

Bảo hành : 12 tháng

Danh mục: Kích thủy lực 1 chiều, Kích nhôm thủy lực

Mô tả

Model Number	Maximum Operating Pressure (bar)	Capacity Class (tonnage)	Maximum Cylinder Capacity Advance (kN)	Stroke (mm)	Collapsed Height A (mm)	Extended Height B (mm)	Return Type	Plunger Type	Material	Cylinder Effective Area Advance (cm²)	Oil Capacity Advance (cm³)	Surface Treatment	Weight (kg)
RAC102	700	10	88	50	154	201	Single-Acting, Spring Return	Solid	Aluminum	12,6	60	Anodized	1,2
RAC104	700	10	88	100	204	304	Single-Acting, Spring Return	Solid	Aluminum	12,6	130	Anodized	1,4
RAC106	700	10	88	150	254	404	Single-Acting, Spring Return	Solid	Aluminum	12,6	190	Anodized	1,8
RAC152	700	15	137	50	161	211	Single-Acting, Spring Return	Solid	Aluminum	19,6	100	Anodized	1,8
RAC154	700	15	137	100	211	311	Single-Acting, Spring Return	Solid	Aluminum	19,6	200	Anodized	1,9
RAC156	700	15	137	150	261	411	Single-Acting, Spring Return	Solid	Aluminum	19,6	290	Anodized	3,0
RAC202	700	20	218	50	174	224	Single-Acting, Spring Return	Solid	Aluminum	31,2	156	Anodized	3,6
RAC204	700	20	218	100	224	324	Single-Acting, Spring Return	Solid	Aluminum	31,2	312	Anodized	4,1
RAC206	700	20	218	150	274	424	Single-Acting, Spring Return	Solid	Aluminum	31,2	468	Anodized	4,6
RAC208	700	20	218	200	324	524	Single-Acting, Spring Return	Solid	Aluminum	31,2	624	Anodized	5,1
RAC2010	700	20	218	250	374	624	Single-Acting, Spring Return	Solid	Aluminum	31, 2	780	Anodized	5,6
RAC302	700	30	309	50	181	231	Single-Acting, Spring Return	Solid	Aluminum	44,2	221	Anodized	4,5
RAC304	700	30	309	100	231	331	Single-Acting, Spring Return	Solid	Aluminum	44,2	442	Anodized	5,2
RAC306	700	30	309	150	281	431	Single-Acting, Spring Return	Solid	Aluminum	44,2	663	Anodized	5,9
RAC308	700	30	309	200	331	531	Single-Acting, Spring Return	Solid	Aluminum	44,2	884	Anodized	6,6
RAC3010	700	30	309	250	381	631	Single-Acting, Spring Return	Solid	Aluminum	44,2	1105	Anodized	7,3
RAC502	700	50	496	50	186	236	Single-Acting, Spring Return	Solid	Aluminum	70,9	354	Anodized	8,5
RAC504	700	50	496	100	236	336	Single-Acting, Spring Return	Solid	Aluminum	70,9	709	Anodized	9,8
RAC506	700	50	496	150	286	436	Single-Acting, Spring Return	Solid	Aluminum	70,9	1063	Anodized	11,1
RAC508	700	50	496	200	336	536	Single-Acting, Spring Return	Solid	Aluminum	70,9	1417	Anodized	12,4
RAC5010	700	50	496	250	386	636	Single-Acting, Spring Return	Solid	Aluminum	70,9	1771	Anodized	13,7
RAC1002	700	100	1002	50	221	271	Single-Acting, Spring Return	Solid	Aluminum	143,1	715	Anodized	17,3
RAC1004	700	100	1002	100	271	371	Single-Acting, Spring Return	Solid	Aluminum	143,1	1431	Anodized	19,6
RAC1006	700	100	1002	150	321	471	Single-Acting, Spring Return	Solid	Aluminum	143,1	2147	Anodized	21,9
RAC1008	700	100	1002	200	371	571	Single-Acting, Spring Return	Solid	Aluminum	143,1	2863	Anodized	24,2
RAC10010	700	100	1002	250	421	671	Single-Acting, Spring Return	Solid	Aluminum	143,1	3578	Anodized	26,5
RAC1502	700	150	1589	50	243	293	Single-Acting, Spring Return	Solid	Aluminum	227,0	1135	Anodized	25,3
RAC1504	700	150	1589	100	293	393	Single-Acting, Spring Return	Solid	Aluminum	227,0	2270	Anodized	29,3
RAC1506	700	150	1589	150	343	493	Single-Acting, Spring Return	Solid	Aluminum	227,0	3405	Anodized	33,3
RAC1508	700	150	1589	200	393	593	Single-Acting, Spring Return	Solid	Aluminum	227,0	4540	Anodized	37,3
RAC15010	700	150	1589	250	443	693	Single-Acting, Spring Return	Solid	Aluminum	227,0	5675	Anodized	41,3
