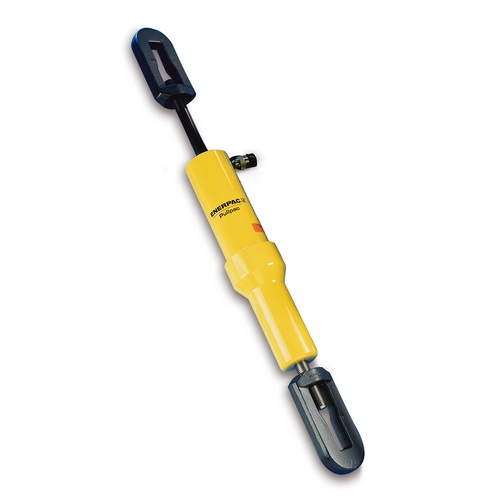

Kích kéo thủy lực 1 chiều Enerpac BRP306

Model Number	Maximum Operating Pressure (bar)	Capacity Class (tonnage)	Maximum Cylinder Capacity Retract (kN)	Stroke (mm)	Collapsed Height A (mm)	Extended Height B (mm)	Return Type	Plunger Type	Material	Cylinder Effective Area Retract (cm²)	Oil Capacity Retract (cm³)	Surface Treatment	Weight (kg)
BRP106C	700	10	105	150	601	751	Single-Acting, Spring Return	Solid	Steel	15,8	238	Paint	15,3
BRP106L	700	10	105	150	573	723	Single-Acting, Spring Return	Solid	Steel	15,8	238	Paint	13,3
BRP306	700	30	326	154	1110	1264	Single-Acting, Spring Return	Solid	Steel	46,4	715	Paint	48.1
BRP606	700	60	505	153	718	871	Single-Acting, Spring Return	Solid	Steel	72,1	1096	Paint	58,3
