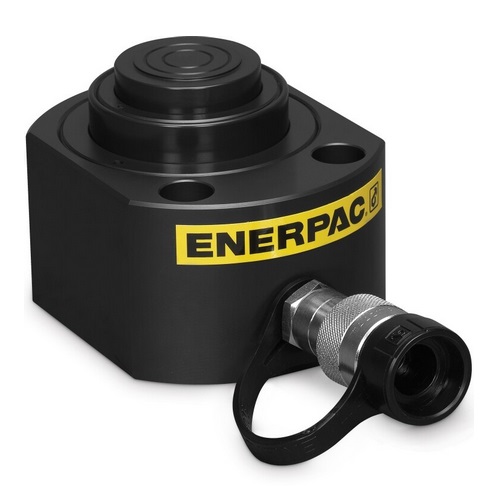

Kích thủy lực 1 chiều lùn Enerpac RLT

Kích đĩa thủy lực nhiều tầng Enerpac RLT

Model : RLTSeries

Tải trọng : 5 – 75 tấn

Hãng sản xuất : ENERPAC

Bảo hành : 12 tháng

Danh mục: Kích thủy lực nhiều tầng, Kích thủy lực lùn, Kích thủy lực 1 chiều

Mô tả

Model Number	Maximum Operating Pressure (bar)	Capacity Class (tonnage)	Maximum Cylinder Capacity Advance (kN)	Stroke (mm)	Collapsed Height A (mm)	Extended Height B (mm)	Return Type	Plunger Type	Material	Oil Capacity Advance (cm³)	Stage 1 Capacity (kN)	Stage 1 Stroke S1 (mm)	Stage 2 Capacity (kN)	Stage 2 Stroke S2 (mm)	Stage 3 Capacity (kN)	Stage 3 Stroke S3 (mm)	Surface Treatment	Weight (kg)
RLT40	700	5	43	17	45	62	Single-Acting, Load Return	Telescopic	Steel	21	111	11	43	6	–	–	Nitride	1,8
RLT41	700	5	43	23	54	77	Single-Acting, Load Return	Telescopic	Steel	51	232	11	111	7	43	5	Nitride	3,1
RLT110	700	12	111	18	54,5	73	Single-Acting, Load Return	Telescopic	Steel	48	232	11	111	7	–	–	Nitride	3.0
RLT111	700	12	111	40	89	129	Single-Acting, Load Return	Telescopic	Steel	241	727	16	309	13	111	11	Nitride	13,1
RLT230	700	25	232	27	75	102	Single-Acting, Load Return	Telescopic	Steel	150	496	16	232	11	–	–	Nitride	7,6
RLT231	700	25	232	32	96	128	Single-Acting, Load Return	Telescopic	Steel	303	929	16	496	10	232	6	Nitride	17,3
RLT311	700	35	309	29	89	118	Single-Acting, Load Return	Telescopic	Steel	224	727	16	309	13	–	–	Nitride	13.0
RLT501	700	50	496	26	96	122	Single-Acting, Load Return	Telescopic	Steel	283	929	16	496	10	–	–	Nitride	17,3
RLT741	700	75	727	26	114	140	Single-Acting, Load Return	Telescopic	Steel	426	1,407	16	727	10	–	–	Nitride	30,4
