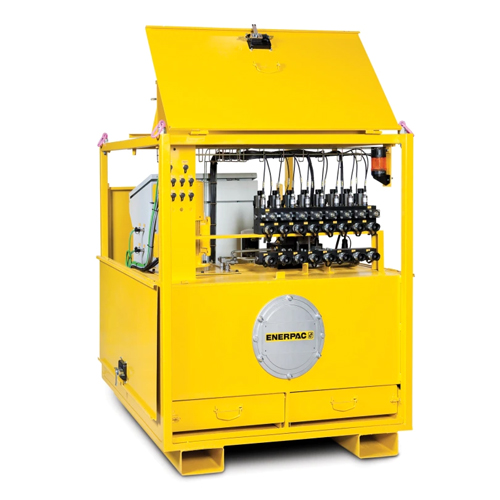

Hệ thống bơm thủy lực nâng hạ đồng bộ Enerpac EVO series

Hệ thống bơm thủy lực nâng hạ đồng bộ nhiều điểm nâng Enerpac EVO series

Model Number	Maximum Operating Pressure (bar)	Cylinder Compatability	Reservoir Capacity (cm³)	Usable Oil Capacity (litres)	Maximum Flow at Rated Pressure	Variable Output Flow Low Pressure Less Than 125 bar (l/Min)	Variable Output Flow High Pressure Greater Than 125 bar (l/Min)	Number of Outlets	Motor Size (hp)	Motor Hertz	Motor Phases	Motor Voltage	Duty Cycle	Valve Operation	Valve Type	Power Source	Motor Electrical Specification	Number of Lift Points	Accuracy Over Full Stroke	Weight (kg)
EVO421380	700	Single-acting, Double-Acting	250000	250	1,12 l/min	4,0 – 13,3	0,75 – 2,51	4	5	50/60 Hz	3 Ph	380-415 V	Extended	Solenoid	4-way, 3-position	Electric	380-415 V, 3 Ph, 50/60 Hz	4	Up to 0.040″	910
EVO421380W	700	Single-acting, Double-Acting	250000	250	1,12 l/min	4,0 – 13,3	0,75 – 2,51	4	5	50/60 Hz	3 Ph	380-415 V	Extended	Solenoid	4-way, 3-position	Electric	380-415 V, 3 Ph, 50/60 Hz	4	Up to 0.040″	910
EVO421460	700	Single-acting, Double-Acting	250000	250	1,12 l/min	4,0 – 13,3	0,75 – 2,51	4	5	50/60 Hz	3 Ph	460-480 V	Extended	Solenoid	4-way, 3-position	Electric	460-480 V, 3 Ph, 50/60 Hz	4	Up to 0.040″	910
EVO421460W	700	Single-acting, Double-Acting	250000	250	1,12 l/min	4,0 – 13,3	0,75 – 2,51	4	5	50/60 Hz	3 Ph	460-480 V	Extended	Solenoid	4-way, 3-position	Electric	460-480 V, 3 Ph, 50/60 Hz	4	Up to 0.040″	910
EVO440380	700	Single-acting, Double-Acting	250000	250	2,24 l/min	4,7 – 15,6	1,44 – 4,80	4	10	50/60 Hz	3 Ph	380-415 V	Extended	Solenoid	4-way, 3-position	Electric	380-415 V, 3 Ph, 50/60 Hz	4	Up to 0.040″	1005
EVO440380W	700	Single-acting, Double-Acting	250000	250	2,24 l/min	4,7 – 15,6	1,44 – 4,80	4	10	50/60 Hz	3 Ph	380-415 V	Extended	Solenoid	4-way, 3-position	Electric	380-415 V, 3 Ph, 50/60 Hz	4	Up to 0.040″	1005
EVO440460	700	Single-acting, Double-Acting	250000	250	2,24 l/min	4,7 – 15,6	1,44 – 4,80	4	10	50/60 Hz	3 Ph	460-480 V	Extended	Solenoid	4-way, 3-position	Electric	460-480 V, 3 Ph, 50/60 Hz	4	Up to 0.040″	1005
EVO440460W	700	Single-acting, Double-Acting	250000	250	2,24 l/min	4,7 – 15,6	1,44 – 4,80	4	10	50/60 Hz	3 Ph	460-480 V	Extended	Solenoid	4-way, 3-position	Electric	460-480 V, 3 Ph, 50/60 Hz	4	Up to 0.040″	1005
EVO821380	700	Single-acting, Double-Acting	250000	250	1,12 l/min	4,0 – 13,3	0,75 – 2,51	8	5	50/60 Hz	3 Ph	380-415 V	Extended	Solenoid	4-way, 3-position	Electric	380-415 V, 3 Ph, 50/60 Hz	8	Up to 0.040″	910
EVO821380W	700	Single-acting, Double-Acting	250000	250	1,12 l/min	4,0 – 13,3	0,75 – 2,51	8	5	50/60 Hz	3 Ph	380-415 V	Extended	Solenoid	4-way, 3-position	Electric	380-415 V, 3 Ph, 50/60 Hz	8	Up to 0.040″	910
EVO821460	700	Single-acting, Double-Acting	250000	250	1,12 l/min	4,0 – 13,3	0,75 – 2,51	8	5	50/60 Hz	3 Ph	460-480 V	Extended	Solenoid	4-way, 3-position	Electric	460-480 V, 3 Ph, 50/60 Hz	8	Up to 0.040″	910
EVO821460W	700	Single-acting, Double-Acting	250000	250	1,12 l/min	4,0 – 13,3	0,75 – 2,51	8	5	50/60 Hz	3 Ph	460-480 V	Extended	Solenoid	4-way, 3-position	Electric	460-480 V, 3 Ph, 50/60 Hz	8	Up to 0.040″	910
EVO840380	700	Single-acting, Double-Acting	250000	250	2,24 l/min	4,7 – 15,6	1,44 – 4,80	8	10	50/60 Hz	3 Ph	380-415 V	Extended	Solenoid	4-way, 3-position	Electric	380-415 V, 3 Ph, 50/60 Hz	8	Up to 0.040″	910
EVO840380W	700	Single-acting, Double-Acting	250000	250	2,24 l/min	4,7 – 15,6	1,44 – 4,80	8	10	50/60 Hz	3 Ph	380-415 V	Extended	Solenoid	4-way, 3-position	Electric	380-415 V, 3 Ph, 50/60 Hz	8	Up to 0.040″	910
EVO840460	700	Single-acting, Double-Acting	250000	250	2,24 l/min	4,7 – 15,6	1,44 – 4,80	8	10	50/60 Hz	3 Ph	460-480 V	Extended	Solenoid	4-way, 3-position	Electric	460-480 V, 3 Ph, 50/60 Hz	8	Up to 0.040″	910
EVO840460W	700	Single-acting, Double-Acting	250000	250	2,24 l/min	4,7 – 15,6	1,44 – 4,80	8	10	50/60 Hz	3 Ph	460-480 V	Extended	Solenoid	4-way, 3-position	Electric	460-480 V, 3 Ph, 50/60 Hz	8	Up to 0.040″	910
EVO1221460		Single-acting, Double-Acting						12	5	50/60 Hz	3 Ph	460-480 V	Extended	Solenoid	4-way, 3-position	Electric	460-480 V, 3 Ph, 50/60 Hz	12	Up to 0.040″
EVO1221460W		Single-acting, Double-Acting						12	5	50/60 Hz	3 Ph	460-480 V	Extended	Solenoid	4-way, 3-position	Electric	460-480 V, 3 Ph, 50/60 Hz	12	Up to 0.040″
EVO1240460		Single-acting, Double-Acting						12	10	50/60 Hz	3 Ph	460-480 V	Extended	Solenoid	4-way, 3-position	Electric	460-480 V, 3 Ph, 50/60 Hz	12	Up to 0.040″
EVO1221380	700	Single-acting, Double-Acting	250000	250	2,51 l/min	4,0 – 13,3	0,75 – 2,51	12	5	50/60 Hz	3 Ph	380-415 V	Extended	Solenoid	4-way, 3-position	Electric	380-415 V, 3 Ph, 50/60 Hz	12	Up to 0.040″	910
EVO1221380W	700	Single-acting, Double-Acting	250000	250	2,51 l/min	4,0 – 13,3	0,75 – 2,51	12	5	50/60 Hz	3 Ph	380-415 V	Extended	Solenoid	4-way, 3-position	Electric	380-415 V, 3 Ph, 50/60 Hz	12	Up to 0.040″	910
EVO1240380	700	Single-acting, Double-Acting	250000	250	4,80 l/min	4,7 – 15,6	1,44 – 4,80	12	10	50/60 Hz	3 Ph	380-415 V	Extended	Solenoid	4-way, 3-position	Electric	380-415 V, 3 Ph, 50/60 Hz	12	Up to 0.040″	1000
EVO1240380W	700	Single-acting, Double-Acting	250000	250	4,80 l/min	4,7 – 15,6	1,44 – 4,80	12	10	50/60 Hz	3 Ph	380-415 V	Extended	Solenoid	4-way, 3-position	Electric	380-415 V, 3 Ph, 50/60 Hz	12	Up to 0.040″	1000
EVO1240460W	700	Single-acting, Double-Acting	250000	250	2,24 l/min	4,7 – 15,6	1,44 – 4,80	12	10	50/60 Hz	3 Ph	460-480 V	Extended	Solenoid	4-way, 3-position	Electric	460-480 V, 3 Ph, 50/60 Hz	12	Up to 0.040″	1025
