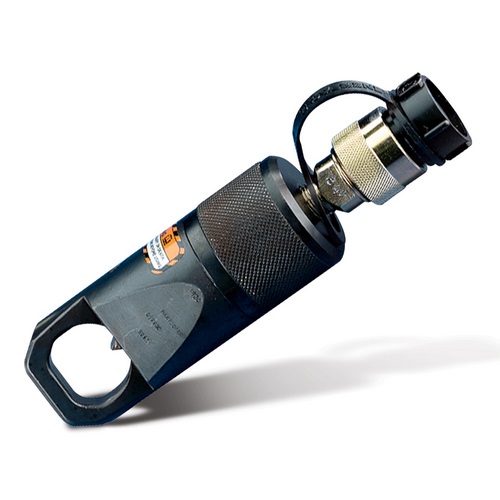

Đầu cắt đai ốc thủy lực Enerpac NC series

Hãng sản xuất : ENERPAC

Model Number	Maximum Operating Pressure (bar)	Capacity (kN)	Cutter Head Return Type	Hexagon Nut Range (mm)	Bolt Range (mm)	Maximum Material Hardness	Oil Capacity (cm³)	Replacement Chisel Model Number (Moving)	Weight (kg)
NC1319	700	49	Single-Acting, Spring Return	10 – 19	M6 – M12	HRC 44	15	NCB1319	1,2
NC1019	700	49	Single-Acting, Spring Return	10 – 19	M6 – M12	HRC 44	15	NCB1019	1,2
NC1924	700	98	Single-Acting, Spring Return	19 – 24	M12 – M16	HRC 44	20	NCB1924	2,0
NC2432	700	147	Single-Acting, Spring Return	24 – 32	M16 – M22	HRC 44	60	NCB2432	3,0
NC3241	700	196	Single-Acting, Spring Return	32 – 41	M22 – M27	HRC 44	80	NCB3241	4,4
NC4150	700	343	Single-Acting, Spring Return	41 – 50	M27 – M33	HRC 44	155	NCB4150	8,2
NC5060	700	490	Single-Acting, Spring Return	50 – 60	M33 – M39	HRC 44	240	NCB5060	11,8
NC6075	700	882	Single-Acting, Spring Return	60 – 75	M39 – M48	HRC 44	492	NCB6075	34,1
NC1924D	700	98		19 – 24	M12 – M16	HRC 44	20	NCB1924	3,8
NC2432D	700	147		24 – 32	M16 – M22	HRC 44	60	NCB2432	5,4
NC3241D	700	196		32 – 41	M22 – M27	HRC 44	80	NCB3241	7,2
