Cắt đai ốc Enerpac NSH

Hãng sản xuất : ENERPAC

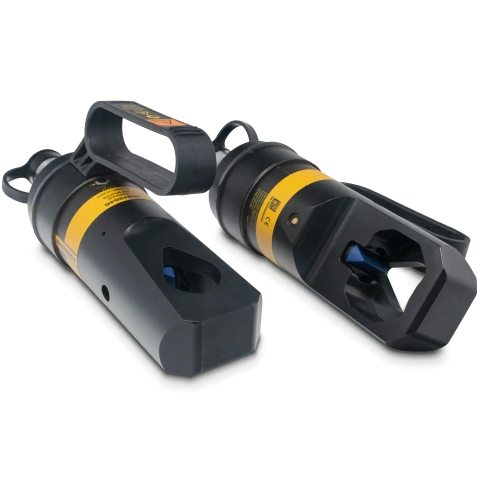

Đầu cắt đai ốc bằng thủy lực NSH series:

Model Number	Maximum Operating Pressure (bar)	Capacity (kN)	Cutter Head Return Type	Hexagon Nut Range (mm)	Bolt Range (mm)	Maximum Material Hardness	Oil Capacity (cm³)	Cutting Tip Service Kit Model Number	Weight (kg)
NSH1927	700	120	Single-Acting, Spring Return	19 – 27	M12 – M18	HRC 44	46	NSH1927CTK	3,5
NSH2432	700	150	Single-Acting, Spring Return	24 – 32	M16 – M22	HRC 44	46	NSH2432CTK	4,0
NSH3646	700	200	Single-Acting, Spring Return	36 – 46	M24 – M30	HRC 44	80	NSH3646CTK	6,9
NSH5065	700	360	Single-Acting, Spring Return	50 – 65	M33 – M42	HRC 44	230	NSH5065CTK	10,9
NSH6575	700	500	Single-Acting, Spring Return	65 – 75	M42 – M48	HRC 44	328	NSH6575CTK	24,5
