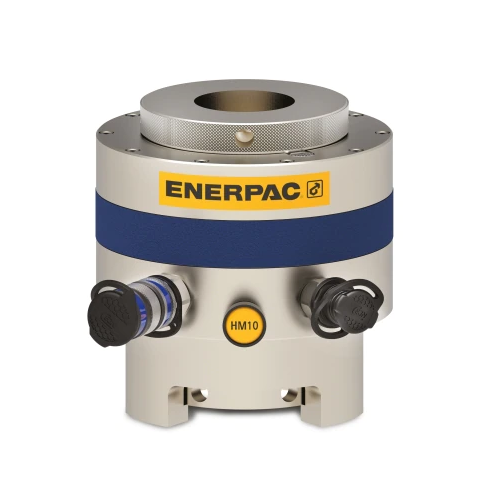

Căng đai ốc Enerpac HM series

Model : HM Series

Hãng sản xuất : ENERPAC

Model Number	Maximum Operating Pressure (bar)	Threaded Fastener Range (mm)	Threaded Fastener Range (in)	Hydraulic Pressure Area (mm²)	Load Capacity (kN)	Stroke (mm)	Weight (kg)
HM01LC	1500	M20	3/4″	894	134,0	10	1,6
HM02LC	1500	M20 – M22	3/4″ – 7/8″	1240	186,0	15	1,8
HM03LC	1500	M20 – M24	3/4″ – 1″	1628	244,1	15	2,2
HM04LC	1500	M22 – M30	7/8″ – 1 1/8″	2159	323,8	15	2,7
HM05LC	1500	M24 – M33	1″ – 1 1/4″	2752	412,7	15	3,3
HM06LC	1500	M30 – M39	1 1/8″ 1 1/2″	4162	624,1	15	4,5
HM07LC	1500	M33 – M42	1 1/4″ – 1 5/8″	4980	746,8	15	5,2
HM08LC	1500	M36 – M45	1 3/8″ – 1 3/4″	5869	880,1	15	6,3
HM09LC	1500	M39 – M48	1 1/2″ – 1 7/8″	6834	1024,9	15	6,5
HM10LC	1500	M42 – M52	1 5/8″ – 2″	7868	1179,8	15	8,3
HM11LC	1500	M45 – M60	1 3/4″ – 2 1/4″	10152	1522,5	15	10,5
HM12LC	1500	M48 – M64	1 7/8″ – 2 1/2″	12722	1907,7	15	13,3
HM13LC	1500	M64 – M76	2 1/2″ – 3″	16964	2544,0	15	17,6
HM14LC	1500	M72 – M90	3″ – 3 1/2″	23451	3516,7	15	25,8
HM15LC	1500	M90 – M100	3 1/2″ – 4″	31008	4650,0	15	32,5
