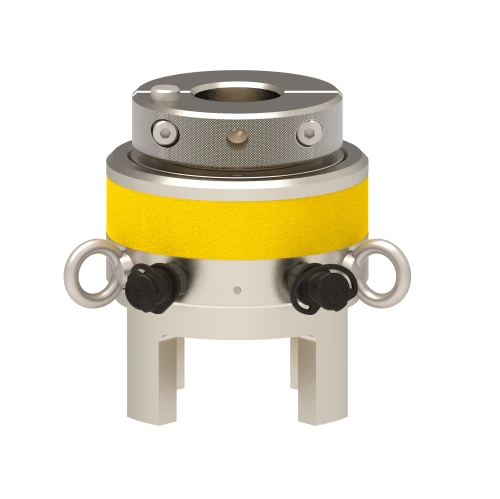

Căng đai ốc dưới biển Enerpac EAJ series

Model : EAJ Series

Hãng sản xuất : ENERPAC

Bảo hành : 12 tháng

Model Number	Maximum Operating Pressure (bar)	Bolt Diameter (mm)	Bolt Diameter (in)	Threaded Fastener Range (mm)	Threaded Fastener Range (in)	Load Capacity (kN)	Stroke (mm)	Weight (kg)
EAJ1LC	1500	M20 – M22	3/4″ – 7/8″	M20 – M22	3/4″ – 7/8″	151,3	20	1,5
EAJ2LC	1500	M24 – M30	1″ – 1 1/8″	M24 – M30	1″ – 1 1/8″	248,7	30	3,0
EAJ3LC	1500	M33 – M36	1 1/4″ – 1 3/8″	M33 – M36	1 1/4″ – 1 3/8″	378,6	30	4,5
EAJ4LC	1500	M39 – M42	1 1/2″ – 1 5/8″	M39 – M42	1 1/2″ – 1 5/8″	553,0	30	6,0
EAJ5LC	1500	M45 – M52	1 3/4″ – 2″	M45 – M52	1 3/4″ – 2″	886,3	30	9,0
EAJ6LC	1500	M56 – M64	2 1/4″ – 2 1/2″	M56 – M64	2 1/4″ – 2 1/2″	1246,9	30	13,0
EAJ7LC	1500	M68 – M76	2 3/4″ – 3″	M68 – M76	2 3/4″ – 3″	1855,4	30	19,0
EAJ8LC	1500	M80 – M90	3 1/4″ – 3 1/2″	M80 – M90	3 1/4″ – 3 1/2″	2320,9	30	24,5
