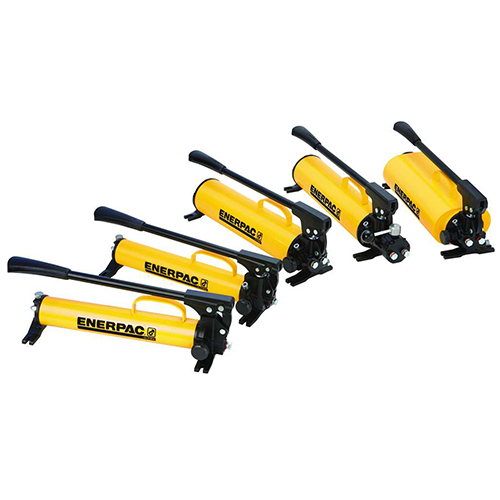

Bơm tay Enerpac P series

Model : P Series

Hãng sản xuất : ENERPAC

Bảo hành : 12 tháng

Bơm tay thủy lực Enerpac P series, áp lực max 700 bar, được sử dụng cho kích 1 chiều, kích 2 chiều và các dụng cụ thủy lực khác,…

Bơm tay ENERPAC được thiết kế nhỏ gọn, độ chính xác cao, và bền bỉ:

Thông số kỹ thuật :

Model Number	Maximum Operating Pressure (bar)	Pressure Rating 2nd Stage (bar)	Cylinder Compatability	Pump Type	Reservoir Capacity (cm³)	Usable Oil Capacity (cm³)	Maximum Flow at Rated Pressure	Oil Displacement Per Stroke (cm³)	Oil Displacement Per Stroke 1st Stage (cm³)	Oil Displacement Per Stroke 2nd Stage (cm³)	Maximum Handle Effort (kg)	Piston Stroke (mm)	Valve Operation	Power Source	Weight (kg)
P141	700	700	Single-acting	Single Speed	327	327	0,90 cm3/stroke	0,90	–	–	32,7	12,7	Manual	Manual	2,4
P391	700	700	Single-acting	Single Speed	901	901	2,47 cm3/stroke	2,47	–	–	38,6	25,4	Manual	Manual	4,1
P142	700	700	Single-acting	Two Speed	327	327	0,90 cm3/stroke	–	3,62	0,90	35,4	12,7	Manual	Manual	2,4
P202	700	700	Single-acting	Two Speed	901	901	0,90 cm3/stroke	–	3,62	0,90	28,6	12,7	Manual	Manual	3,4
P392	700	700	Single-acting	Two Speed	901	901	2,47 cm3/stroke	–	11,26	2,47	42,2	25,4	Manual	Manual	4,1
P802	700	700	Single-acting	Two Speed	2540	2540	2,47 cm3/stroke	–	39,33	2,47	43,1	25,4	Manual	Manual	8,2
P842	700	700	Double-acting	Two Speed	2540	2540	2,47 cm3/stroke	–	39,33	2,47	43,1	25,4	Manual	Manual	10,0
P39	700	700	Single-acting	Single Speed	672	672	2,46 cm3/stroke	2,46	–	–	39	25,4	Manual	Manual	6,2
P77	700	700	Single-acting	Two Speed	672	672	2,46 cm3/stroke	–	16,39	2,46	40	25,4	Manual	Manual	7,1
P80	700	700	Single-acting	Two Speed	2200	2200	2,46 cm3/stroke	–	16,39	2,46	35	25,4	Manual	Manual	10,7
P801	700	700	Single-acting	Two Speed	4100	4100	2,46 cm3/stroke	–	16,39	2,46	35	25,4	Manual	Manual	14,1
P84	700	700	Double-acting	Two Speed	2200	2200	2,46 cm3/stroke	–	16,39	2,46	35	25,4	Manual	Manual	11,8
P462	700	700	Single-acting	Two Speed	7423	7423	4,75 cm3/stroke	–	126,20	4,75	49	38,1	Manual	Manual	27,7
P464	700	700	Double-acting	Two Speed	7423	7423	4,75 cm3/stroke	–	126,20	4,75	49	38,1	Manual	Manual	27,7
P18	200		Single-acting		360	360	2,46 cm3/stroke	2,46	–	–	16	25,4	Manual	Manual	5,0
P25	175		Single-acting		3277	3277	9,50 cm3/stroke	9,50	–	–	27	38,1	Manual	Manual	16,3
P50	350		Single-acting		3277	3277	4,75 cm3/stroke	4,75	–	–	27	38,1	Manual	Manual	16,8
P51	200		Single-acting		819	819	4,10 cm3/stroke	4,10	–	–	27	25,4	Manual	Manual	5,4
P392FP	700	700	Single-acting		492	492	2,47 cm3/stroke	–	11,26	2,47	42	25,4	Manual	Manual	7,0
P142ALSS	700				327		0,9 cm3/stroke	–	3,62	0,90		12,7	Manual	Manual	2
P392ALSS	700				901		2,47 cm3/stroke	–	11,26	2,47		25,4	Manual	Manual	4.1
P1425000	350	350	Single-acting		325	325	0,90 cm3/stroke	–	3,62	0,90	35	12,7	Manual	Manual	2,0
