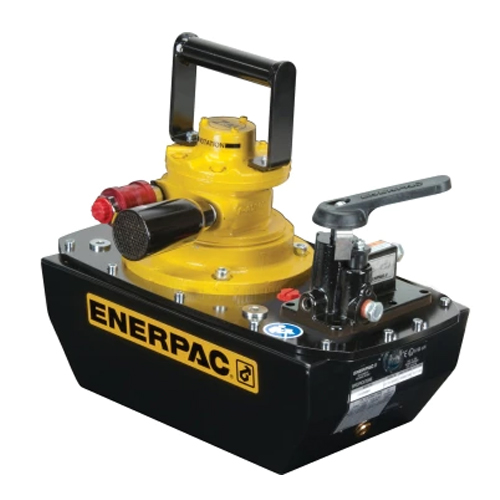

Bơm khí cờ lê thủy lực Enerpac ZA

Model Number	Maximum Operating Pressure (bar)	Cylinder Compatability	Reservoir Capacity (cm³)	Usable Oil Capacity (litres)	Maximum Flow at Rated Pressure	Output Flow Rate at 7 bar (l/min)	Output Flow Rate at 50 bar (l/min)	Output Flow Rate at 350 bar (l/min)	Output Flow Rate at 700 bar (l/min)	Valve Function	Valve Operation	Valve Type	Valve Model	Power Source	Air Consumption (l/min)	Sound Level (dBa)	Relief Valve Adjustment Range (bar)	Weight (kg)
ZA4204MX	700	Single-acting	4000	4,0	1,3 l/min	14,0	11,0	1,8	1,3	Advance / Retract	Manual	3-way, 2-position	VM32	Air	2840	94 – 97	70 – 700	30
ZA4208MX		Single-acting								Advance / Retract	Manual	3-way, 2-position	VM32	Air		94 – 97
ZA4220MX		Single-acting								Advance / Retract	Manual	3-way, 2-position	VM32	Air		94 – 97
ZA4404MX	700	Double-acting	4000	4,0	1,3 l/min	14,0	11,0	1,8	1,3	Advance / Hold / Retract	Manual	3-way, 2-position	VM43	Air	2840	94 – 97	70 – 700	31
ZA4408MX	700	Double-acting	6600	6,6	1,3 l/min	14,0	11,0	1,8	1,3	Advance / Hold / Retract	Manual	4-way, 3-position	VM43	Air	2840	94 – 97	70 – 700	35
ZA4410MX		Double-acting								Advance / Hold / Retract	Manual	4-way, 3-position	VM43	Air		94 – 97
ZA4420MX	700	Double-acting	20000	20,0	1,3 l/min	14,0	11,0	1,8	1,3	Advance / Hold / Retract	Manual	4-way, 3-position	VM43	Air	2840	94 – 97	70 – 700	52
ZA4440MX	700	Double-acting	40000	40,0	1,3 l/min	14,0	11,0	1,8	1,3	Advance / Hold / Retract	Manual	4-way, 3-position	VM43	Air	2840	94 – 97	70 – 700	75
