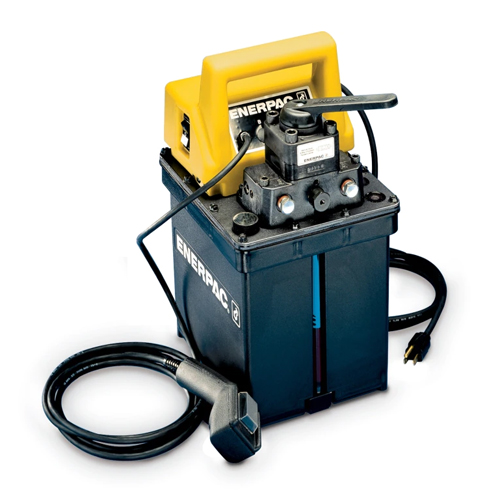

Bơm thủy lực dùng điện Enerpac PEM series

Bơm điện thủy lực Enerpac PE series

Danh mục:
Model Number Maximum Operating Pressure (bar) Pressure Rating 1st Stage (bar) Pressure Rating 2nd Stage (bar) Cylinder Compatability Reservoir Capacity (cm3) Usable Oil Capacity (litres) Maximum Flow at Rated Pressure Output Flow Rate 1st Stage (l/min) Output Flow Rate 2nd Stage (l/min) Motor Size (hp) Motor Hertz Motor Phases Motor Voltage Duty Cycle Valve Function Valve Operation Valve Type Valve Model Power Source Motor Electrical Specification Charger Voltage (VAC) Current Draw (amps) Sound Level (dBa) Relief Valve Adjustment Range (bar) Weight (kg)
PEJ1201B 700 70 700 Single-acting 5500 5,5 0,27 l/min 2,0 0,27 0.5 50/60 Hz 1 Ph 115 V Extended Advance / Retract Manual 3-way, 2-position, normally open VMP 10000D Electric 115 V, 1 Ph, 50/60 Hz 115 13 62 – 70 70 – 700 24,9
PEJ1201E 700 70 700 Single-acting 5500 5,5 0,27 l/min 2,0 0,27 0.5 50/60 Hz 1 Ph 208-240 V Extended Advance / Retract Manual 3-way, 2-position, normally open VMP 10000D Electric 230 V, 1 Ph, 50/60 Hz 230 6.75 62 – 70 70 – 700 24,9
PEJ1301B 700 70 700 Single-acting 5500 5,5 0,27 l/min 2,0 0,27 0.5 50/60 Hz 1 Ph 115 V Extended Advance / Hold / Retract Manual 3-way, 3-position, tandem center WMF 10000D Electric 115 V, 1 Ph, 50/60 Hz 115 13 62 – 70 70 – 700 24,9
PEJ1301E 700 70 700 Single-acting 5500 5,5 0,27 l/min 2,0 0,27 0.5 50/60 Hz 1 Ph 208-240 V Extended Advance / Hold / Retract Manual 3-way, 3-position, tandem center WMF 10000D Electric 230 V, 1 Ph, 50/60 Hz 230 6.75 62 – 70 70 – 700 24,9
PEJ1401B 700 70 700 Double-acting 5500 5,5 0,27 l/min 2,0 0,27 0.5 50/60 Hz 1 Ph 115 V Extended Advance / Hold / Retract Manual 4-way, 4-position, tandem center WMC 10000D Electric 115 V, 1 Ph, 50/60 Hz 115 13 62 – 70 70 – 700 24,9
PEJ1401E 700 70 700 Double-acting 5500 5,5 0,27 l/min 2,0 0,27 0.5 50/60 Hz 1 Ph 208-240 V Extended Advance / Hold / Retract Manual 4-way, 4-position, tandem center WMC 10000D Electric 230 V, 1 Ph, 50/60 Hz 230 6.75 62 – 70 70 – 700 24,9
PEM1201B 700 70 700 Single-acting 5500 5,5 0,27 l/min 2,0 0,27 0.5 50/60 Hz 1 Ph 115 V Extended Advance / Retract Manual 3-way, 2-position, normally open VMP 10000D Electric 115 V, 1 Ph, 50/60 Hz 115 13 62 – 70 70 – 700 24,0
PEM1201E 700 70 700 Single-acting 5500 5,5 0,27 l/min 2,0 0,27 0.5 50/60 Hz 1 Ph 208-240 V Extended Advance / Retract Manual 3-way, 2-position, normally open VMP 10000D Electric 230 V, 1 Ph, 50/60 Hz 230 6.75 62 – 70 70 – 700 24,0
PEM1301B 700 70 700 Single-acting 5500 5,5 0,27 l/min 2,0 0,27 0.5 50/60 Hz 1 Ph 115 V Extended Advance / Hold / Retract Manual 3-way, 3-position, tandem center WMF 10000D Electric 115 V, 1 Ph, 50/60 Hz 115 13 62 – 70 70 – 700 24,0
PEM1301E 700 70 700 Single-acting 5500 5,5 0,27 l/min 2,0 0,27 0.5 50/60 Hz 1 Ph 208-240 V Extended Advance / Hold / Retract Manual 3-way, 3-position, tandem center WMF 10000D Electric 230 V, 1 Ph, 50/60 Hz 230 6.75 62 – 70 70 – 700 24,0
PEM1401B 700 70 700 Double-acting 5500 5,5 0,27 l/min 2,0 0,27 0.5 50/60 Hz 1 Ph 115 V Extended Advance / Hold / Retract Manual 4-way, 3-position, tandem center WMC 10000D Electric 115V, 1 Ph, 50/60 Hz 115 13 62 – 70 70 – 700 24,0
PEM1401E 700 70 700 Double-acting 5500 5,5 0,27 l/min 2,0 0,27 0.5 50/60 Hz 1 Ph 208-240 V Extended Advance / Hold / Retract Manual 4-way, 3-position, tandem center WMC 10000D Electric 230 V, 1 Ph, 50/60 Hz 230 6.75 62 – 70 70 – 700 24,0
PER1301B 700 70 700 Single-acting 5500 5,5 0,27 l/min 2,0 0,27 0.5 50/60 Hz 1 Ph 115 V Extended Advance / Hold / Retract Solenoid 3-way, 3-position, tandem center VEF 15500D Electric 115 V, 1 Ph, 50/60 Hz 115 13 62 – 70 70 – 700 29,5
PER1401B 700 70 700 Double-acting 5500 5,5 0,27 l/min 2,0 0,27 0.5 50/60 Hz 1 Ph 115 V Extended Advance / Hold / Retract Solenoid 4-way, 3-position, tandem center VEC 15500D Electric 115 V, 1 Ph, 50/60 Hz 115 13 62 – 70 70 – 700 29,5
PES1201B 700 70 700 Single-acting 5500 5,5 0,27 l/min 2,0 0,27 0.5 50/60 Hz 1 Ph 115 V Extended Advance / Retract Manual 3-way, 2-position, normally open VMP 10000D Electric 115 V, 1 Ph, 50/60 Hz 115 13 62 – 70 70 – 700 28,1
PES1201E 700 70 700 Single-acting 5500 5,5 0,27 l/min 2,0 0,27 0.5 50/60 Hz 1 Ph 208-240 V Extended Advance / Retract Manual 3-way, 2-position, normally open VMP 10000D Electric 230 V, 1 Ph, 50/60 Hz 230 6.75 62 – 70 70 – 700 28,1
PES1401B 700 70 700 Double-acting 5500 5,5 0,27 l/min 2,0 0,27 0.5 50/60 Hz 1 Ph 115 V Extended Advance / Hold / Retract Manual 4-way, 3-position, tandem center WMC 10000D Electric 115 V, 1 Ph, 50/60 Hz 115 13 62 – 70 70 – 700 28,1
PES1401E 700 70 700 Double-acting 5500 5,5 0,27 l/min 2,0 0,27 0.5 50/60 Hz 1 Ph 208-240 V Extended Advance / Hold / Retract Manual 4-way, 3-position, tandem center WMC 10000D Electric 230 V, 1 Ph, 50/60 Hz 230 6.75 62 – 70 70 – 700 28,1
