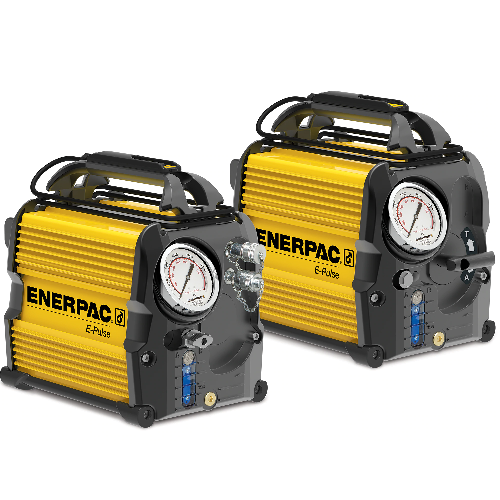

Bơm điện Enerpac EP series

Model : EP Series

Hãng sản xuất : ENERPAC

Model Number	Maximum Operating Pressure (bar)	Cylinder Compatability	Usable Oil Capacity (litres)	Maximum Flow at Rated Pressure	Output Flow Rate at 1 bar (l/min)	Output Flow Rate at 175 bar (l/min)	Output Flow Rate at 350 bar (l/min)	Output Flow Rate at 700 bar (l/min)	Motor Size (hp)	Motor Size (kW)	Motor Voltage	Duty Cycle	Valve Operation	Valve Type	Power Source	Pump Operation	Current Draw (amps)	Sound Level (dBa)	Weight (kg)
EP3104DB-G	700	Single-acting	3,0	0,52	3,61	2,13	0,95	0,52	0.85	0,63	100-120 V	Extended	Solenoid	3-way, 2-position	Electric	Dump	12	70 – 85	18,6
EP3104DI-G	700	Single-acting	3,0	0,52	3,61	2,13	0,95	0,52	0.85	0,63	200-250 V	Extended	Solenoid	3-way, 2-position	Electric	Dump		70 – 85	18,5
EP3104DE-G	700	Single-acting	3,0	0,52	3,61	2,13	0,95	0,52	0.85	0,63	200-250 V	Extended	Solenoid	3-way, 2-position	Electric	Dump	7	70 – 85	18,6
EP3204JB-G	700	Single-acting	3,0	0,52	3,61	2,13	0,95	0,52	0.85	0,63	100-120 V	Extended	Manual	3-way, 2-position	Electric		12	70 – 85	18,4
EP3204JI-G	700	Single-acting	3,0	0,52	3,61	2,13	0,95	0,52	0.85	0,63	200-250 V	Extended	Manual	3-way, 2-position	Electric			70 – 85	18,4
EP3204JE-G	700	Single-acting	3,0	0,52	3,61	2,13	0,95	0,52	0.85	0,63	200-250 V	Extended	Manual	3-way, 2-position	Electric		7	70 – 85	18,4
EP3304SB-G	700	Single-acting	3,0	0,52	3,61	2,13	0,95	0,52	0.85	0,63	100-120 V	Extended	Solenoid	3-way, 2-position	Electric	Dump and Hold	12	70 – 85	18,7
EP3304SI-G	700	Single-acting	3,0	0,52	3,61	2,13	0,95	0,52	0.85	0,63	200-250 V	Extended	Solenoid	3-way, 2-position	Electric	Dump and Hold		70 – 85	18,7
EP3304SE-G	700	Single-acting	3,0	0,52	3,61	2,13	0,95	0,52	0.85	0,63	200-250 V	Extended	Solenoid	3-way, 2-position	Electric	Dump and Hold	7	70 – 85	18,7
EP3404JB-G	700	Double-acting	3,0	0,52	3,61	2,13	0,95	0,52	0.85	0,63	100-120 V	Extended	Manual	4-way, 3-position	Electric		12	70 – 85	18,6
EP3404JI-G	700	Double-acting	3,0	0,52	3,61	2,13	0,95	0,52	0.85	0,63	200-250 V	Extended	Manual	4-way, 3-position	Electric			70 – 85	18,6
EP3404JE-G	700	Double-acting	3,0	0,52	3,61	2,13	0,95	0,52	0.85	0,63	200-250 V	Extended	Manual	4-way, 3-position	Electric		7	70 – 85	18,6
EP3504TB	700		3,0	0,52	3,61	2,13	0,95	0,52	0.85	0,63	100-120 V	Extended	Solenoid	4-way, 2-position	Electric		12	70 – 85	20,4
EP3504TI	700		3,0	0,52	3,61	2,13	0,95	0,52	0.85	0,63	200-250 V	Extended	Solenoid	4-way, 2-position	Electric		7	70 – 85	20,4
EP3504TE	700		3,0	0,52	3,61	2,13	0,95	0,52	0.85	0,63	200-250 V	Extended	Solenoid	4-way, 2-position	Electric		7	70 – 85	20,4
EP3504TB-M	700		3,0	0,52	3,61	2,13	0,95	0,52	0.85	0,63	100-120 V	Extended	Solenoid	4-way, 2-position	Electric		12	70 – 85	21,7
EP3504TI-M	700		3,0	0,52	3,61	2,13	0,95	0,52	0.85	0,63	200-250 V	Extended	Solenoid	4-way, 2-position	Electric		7	70 – 85	21,7
EP3504TE-M	700		3,0	0,52	3,61	2,13	0,95	0,52	0.85	0,63	200-250 V	Extended	Solenoid	4-way, 2-position	Electric		7	70 – 85	21,7
