Bơm cờ lê thủy lực xiết bulong Enerpac ZU series

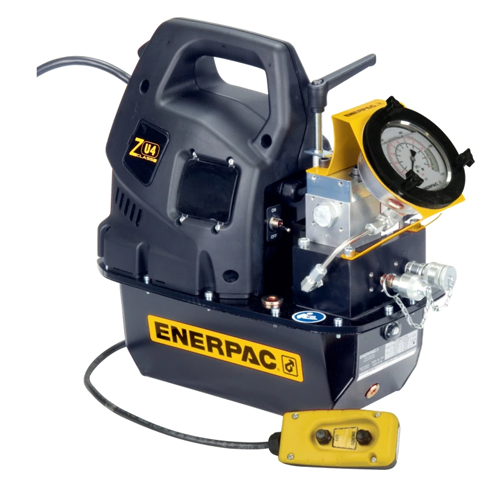

Bơm điện cờ lê thủy lực Enerpac ZU4

Danh mục: Thiết bị siết & kéo bulong Enerpac

Mô tả

Model Number	Maximum Operating Pressure (bar)	For Use With Torque Wrenches	Reservoir Capacity (cm³)	Usable Oil Capacity (litres)	Maximum Flow at Rated Pressure	Output Flow Rate at 7 bar (l/min)	Output Flow Rate at 50 bar (l/min)	Output Flow Rate at 350 bar (l/min)	Output Flow Rate at 700 bar (l/min)	Motor Size (hp)	Motor Hertz	Motor Phases	Motor Voltage	Duty Cycle	Valve Operation	Valve Type	Power Source	Pump Control	Motor Electrical Specification	Relief Valve Adjustment Range (bar)	Weight (kg)
ZU4204BB-Q	700	For use with all Enerpac torque wrenches	4000	4,0	1,0 l/min	11,5	8,8	1,2	1,0	1.7	50/60 Hz	1 Ph	115 V	Intermittent	Solenoid	4-way, 2-position	Electric	Pendant	115 V, 1 Ph, 50/60 Hz	124 – 700	33
ZU4204BB-QH	700	For use with all Enerpac torque wrenches	4000	4,0	1,0 l/min	11,5	8,8	1,2	1,0	1.7	50/60 Hz	1 Ph	115 V	Intermittent	Solenoid	4-way, 2-position	Electric	Pendant	115 V, 1 Ph, 50/60 Hz	124 – 700	37
ZU4204BE-Q	700	For use with all Enerpac torque wrenches	4000	4,0	1,0 l/min	11,5	8,8	1,2	1,0	1.7	50/60 Hz	1 Ph	208-240 V	Intermittent	Solenoid	4-way, 2-position	Electric	Pendant	208-240 V, 1 Ph, 50/60 Hz, European plug CE RF compliant	124 – 700	34
ZU4204TB-Q	700	For use with all Enerpac torque wrenches	4000	4,0	1,0 l/min	11,5	8,8	1,2	1,0	1.7	50/60 Hz	1 Ph	115 V	Intermittent	Solenoid	4-way, 2-position	Electric	Pendant	115 V, 1 Ph, 50/60 Hz	124 – 700	32
ZU4204TE-Q	700	For use with all Enerpac torque wrenches	4000	4,0	1,0 l/min	11,5	8,8	1,2	1,0	1.7	50/60 Hz	1 Ph	208-240 V	Intermittent	Solenoid	4-way, 2-position	Electric	Pendant	208-240 V, 1 Ph, 50/60 Hz, European plug CE RF compliant	124 – 700	32
ZU4204TI-Q	700	For use with all Enerpac torque wrenches	4000	4,0	1,0 l/min	11,5	8,8	1,2	1,0	1.7	50/60 Hz	1 Ph	208-240 V	Intermittent	Solenoid	4-way, 2-position	Electric	Pendant	208-240 V, 1 Ph, 50/60 Hz, NEMA 6-15 plug	124 – 700	32
ZU4208BE-QH	700	For use with all Enerpac torque wrenches	8000	8,0	1,0 l/min	11,5	8,8	1,2	1,0	1.7	50/60 Hz	1 Ph	208-240 V	Intermittent	Solenoid	4-way, 2-position	Electric	Pendant	208-240 V, 1 Ph, 50/60 Hz, European plug CE RF compliant	124 – 700	38
ZU4208BI-Q	700	For use with all Enerpac torque wrenches	8000	8,0	1,0 l/min	11,5	8,8	1,2	1,0	1.7	50/60 Hz	1 Ph	208-240 V	Intermittent	Solenoid	4-way, 2-position	Electric	Pendant	208-240 V, 1 Ph, 50/60 Hz, NEMA 6-15 plug	124 – 700	36
ZU4208BI-QH	700	For use with all Enerpac torque wrenches	8000	8,0	1,0 l/min	11,5	8,8	1,2	1,0	1.7	50/60 Hz	1 Ph	208-240 V	Intermittent	Solenoid	4-way, 2-position	Electric	Pendant	208-240 V, 1 Ph, 50/60 Hz, NEMA 6-15 plug	124 – 700	40
ZU4208TB-Q	700	For use with all Enerpac torque wrenches	8000	8,0	1,0 l/min	11,5	8,8	1,2	1,0	1.7	50/60 Hz	1 Ph	115 V	Intermittent	Solenoid	4-way, 2-position	Electric	Pendant	115 V, 1 Ph, 50/60 Hz	124 – 700	34
ZU4208TE-Q	700	For use with all Enerpac torque wrenches	8000	8,0	1,0 l/min	11,5	8,8	1,2	1,0	1.7	50/60 Hz	1 Ph	208-240 V	Intermittent	Solenoid	4-way, 2-position	Electric	Pendant	208-240 V, 1 Ph, 50/60 Hz, European plug CE RF compliant	124 – 700	34
ZU4208TI-Q	700	For use with all Enerpac torque wrenches	8000	8,0	1,0 l/min	11,5	8,8	1,2	1,0	1.7	50/60 Hz	1 Ph	208-240 V	Intermittent	Solenoid	4-way, 2-position	Electric	Pendant	208-240 V, 1 Ph, 50/60 Hz, NEMA 6-15 plug	124 – 700	34
ZU4208TE-QR	700	For use with all Enerpac torque wrenches	8000	8,0		11,5	8,8	1,2	1,0	1.7	50/60 Hz	1 Ph	208-240 V	Intermittent	Solenoid	4-way, 2-position	Electric	Pendant	208-240 V, 1 Ph, 50/60 Hz, European plug CE RF compliant	124 – 700	48
